Architectural Speakers

ci5160rlm_sp4079g0_product__front.png ci5160rlm_sp4079g0_lifestyle.jpg ci5160rlm_sp4079g0_product.glb ci5160rlm_sp4079g0_product__front-side.png ci5160rlm_sp4079g0_product__left-side.png ci5160rlm_sp4079g0_product_sub_left-side_detail.png ci5160rlm_sp4079g0_product_uni-q_left-side_detail.png ci5160rlm_sp4079g0_product_uni-q_right-side_detail.png ci5160rlm_sp4079g0_product_grille_front.png ci5160rlm_sp4079g0_product_grille_front-side.png
Ci5160RLM-THX
  • Ci5160RLM-THX
  • Ci5160RLM-THX
  • Ci5160RLM-THX
    *Actual product colour may vary from the AR version shown
    **This feature is not supported on Chrome for iOS devices.
    *Actual product colour may vary from the AR version shown
    **This feature is not supported on Chrome for iOS devices.
  • Ci5160RLM-THX
  • Ci5160RLM-THX
  • Ci5160RLM-THX
  • Ci5160RLM-THX
  • Ci5160RLM-THX
  • Ci5160RLM-THX
  • Ci5160RLM-THX
Ci5160RLM-THX

Architectural Speakers

Ci5160RLM-THX

Ultra-high performance architectural speaker with MAT™

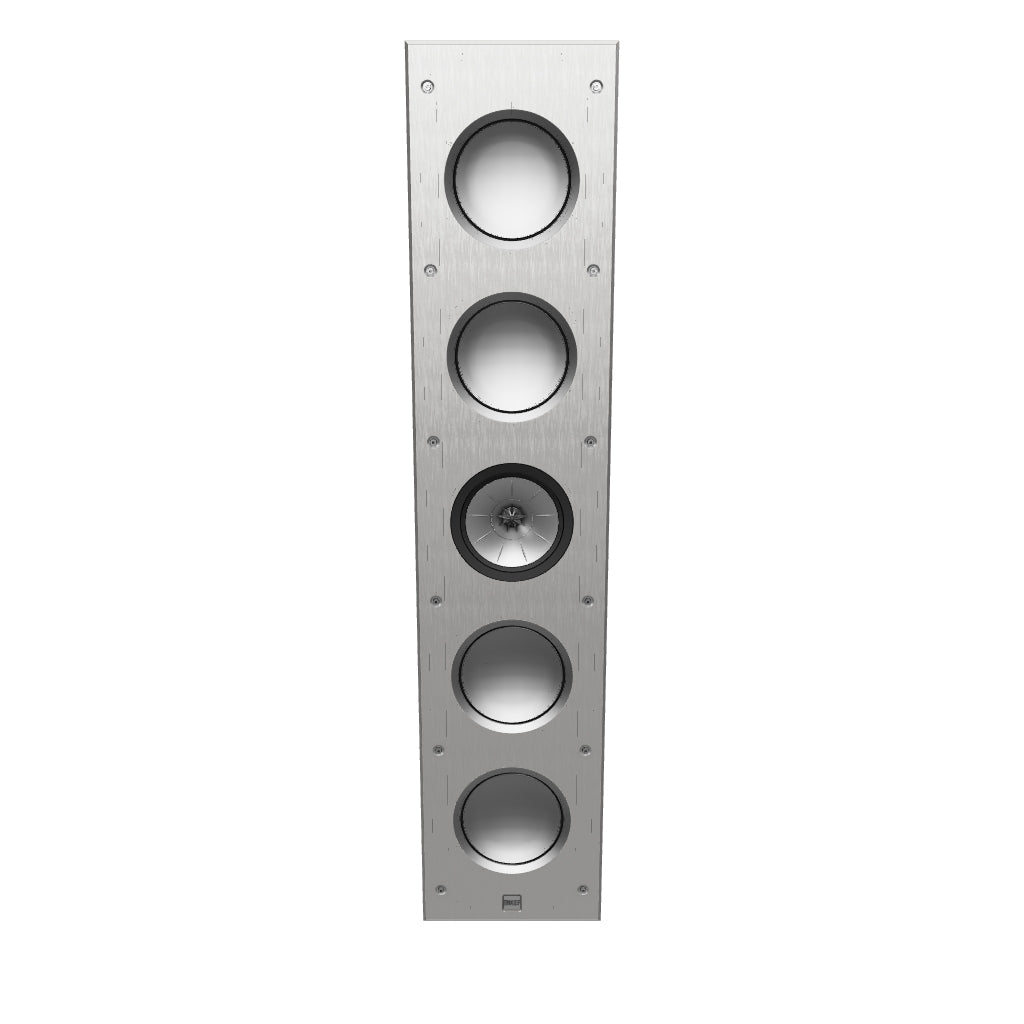

The Ci5160RLM-THX is an in-wall architectural speaker featuring the 12th generation Uni-Q driver array with KEF’s groundbreaking Metamaterial Absorption Technology (MAT™), refined to maximise its full potential and proudly carries the THX Certified Ultra designation. Together with four 6.5” hybrid aluminium bass drivers, it delivers the most dynamic audio experience for home theatres.
€3.000,00
€3.000,00
/ Piece
€3.000,00
€3.000,00
/ Piece
The Ci5160RLM-THX is an in-wall architectural speaker featuring the 12th generation Uni-Q driver array with KEF’s groundbreaking Metamaterial Absorption Technology (MAT™), refined to maximise its full potential and proudly carries the THX Certified Ultra designation. Together with four 6.5” hybrid aluminium bass drivers, it delivers the most dynamic audio experience for home theatres.

Metamaterial Absorption Technology

Absorbs 99% of the unwanted sound

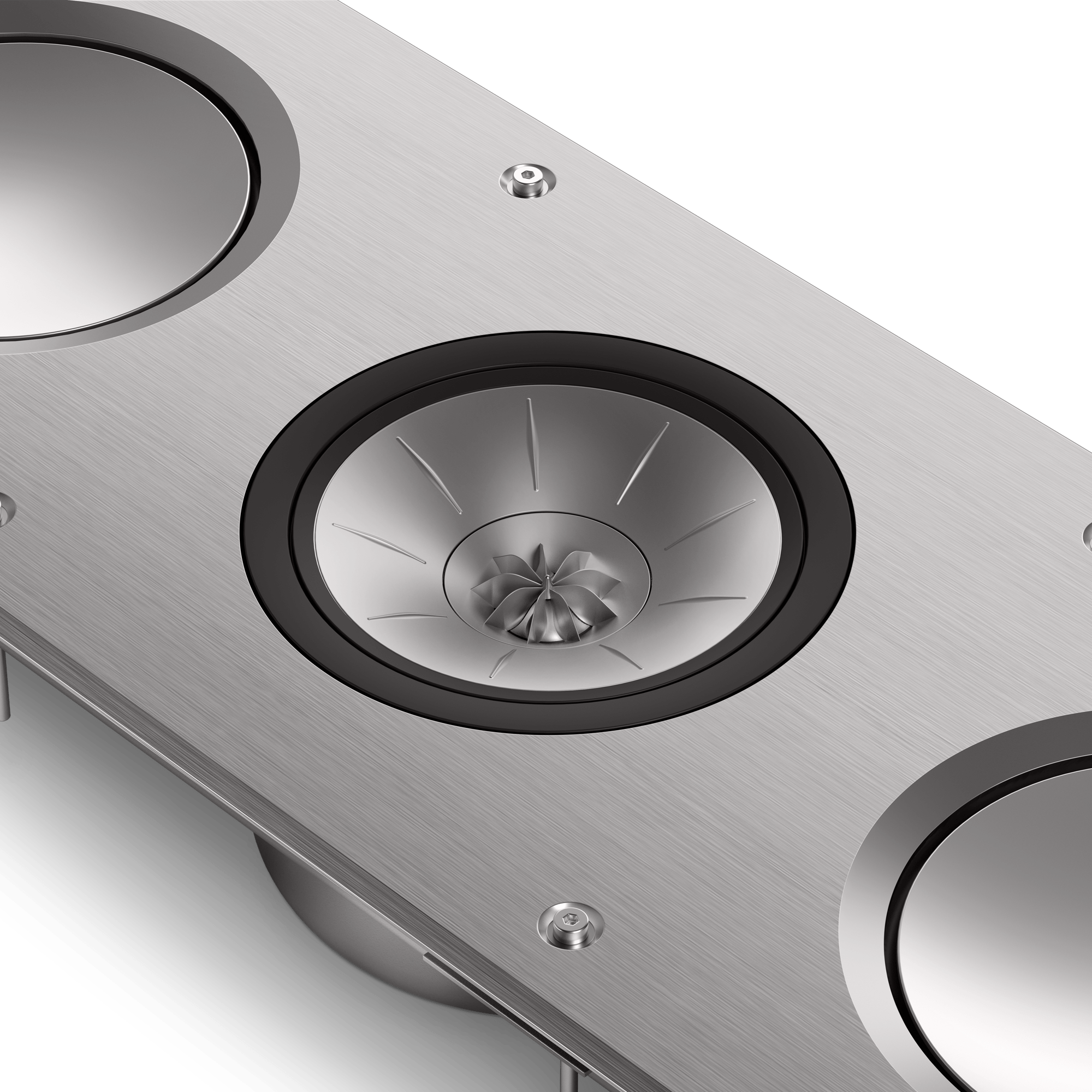

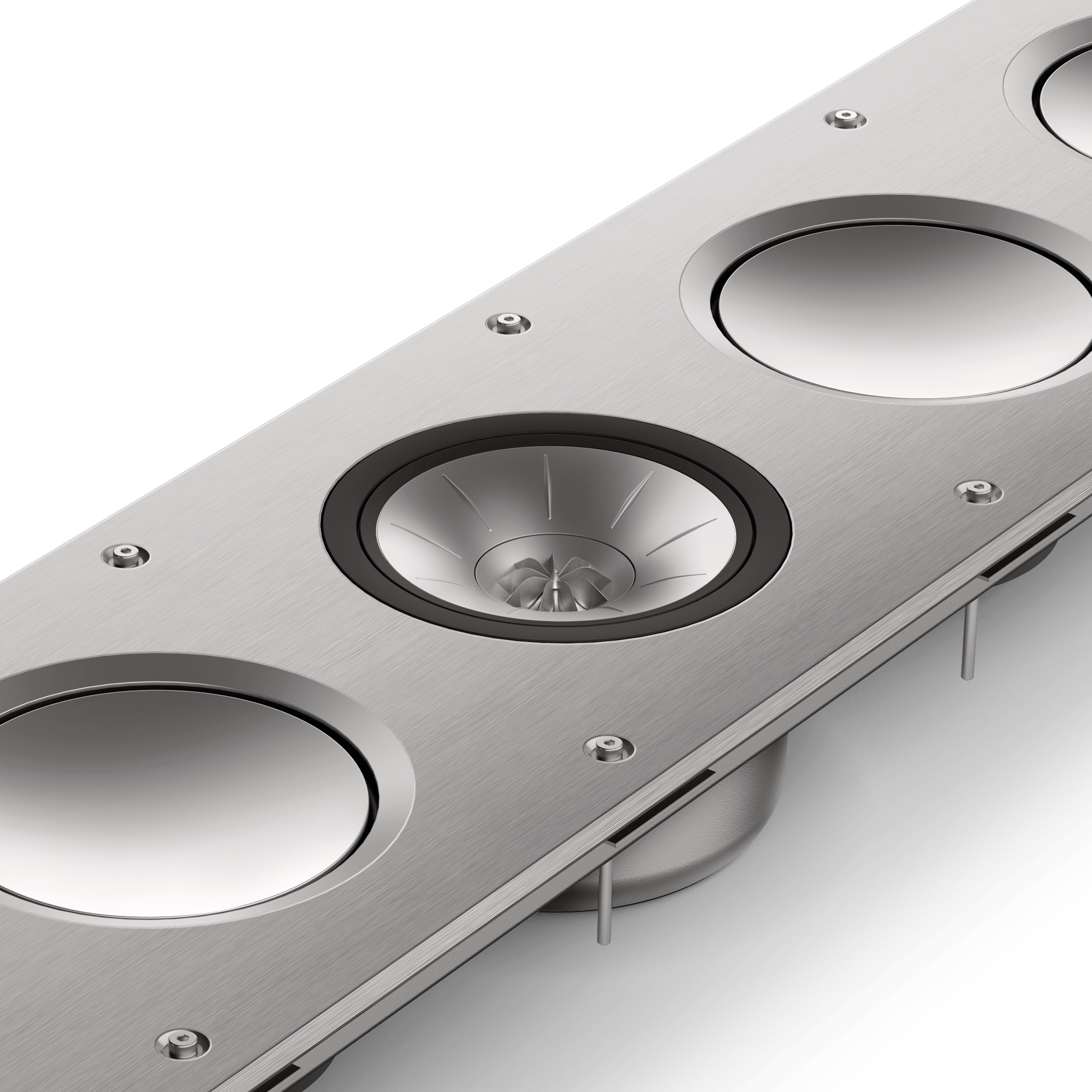

Uni-Q®

Acts as a single point source to enlarge the ‘sweet spot’ and disperse sound more evenly.

THX Certified

Ci5160RLM-THX delivers ultra-high performance with true theatre sound quality for large theatres and living rooms and it is THX® Certified Ultra.

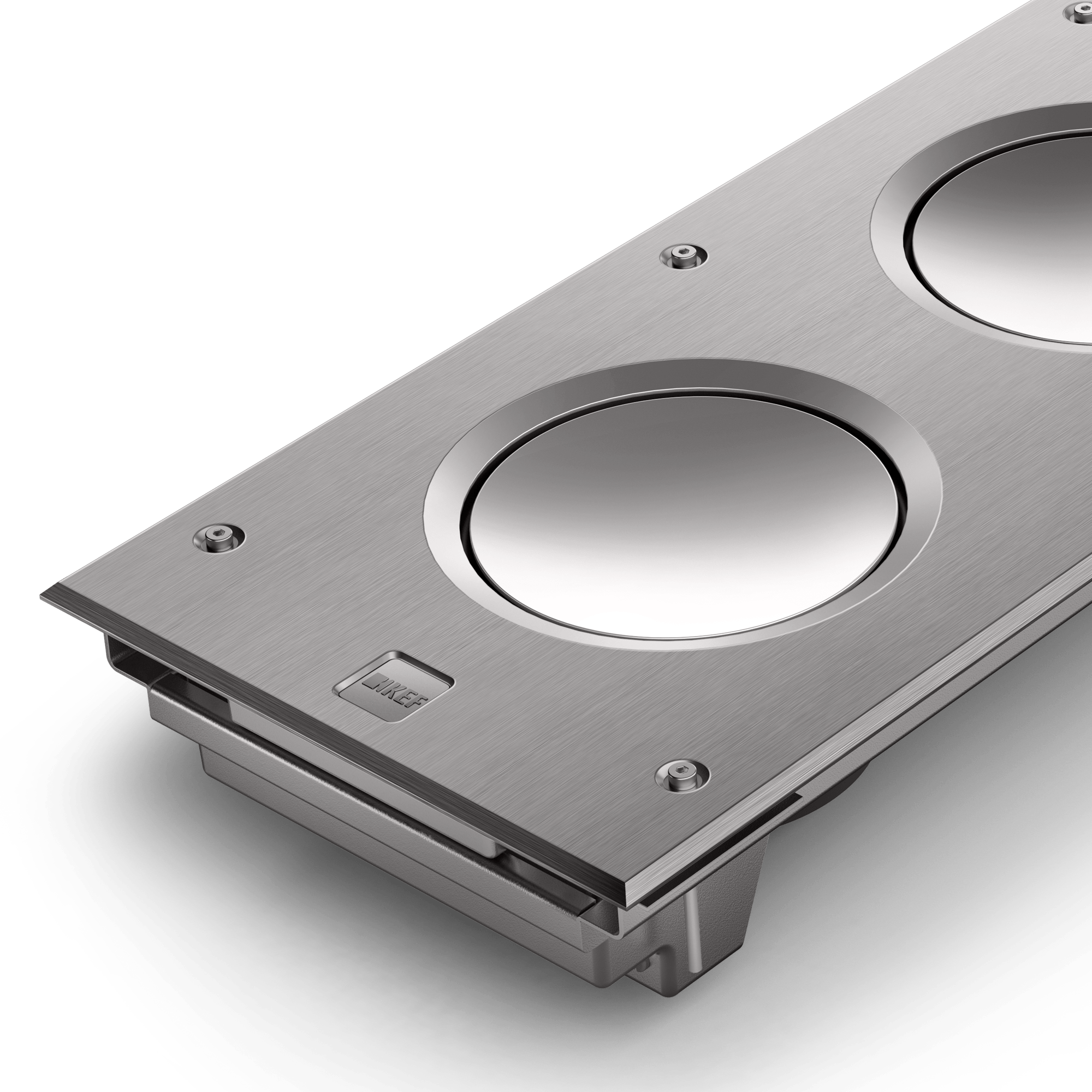

True bass definition

Four hybrid aluminium bass drivers for tight, deep, controlled bass.

Total attention to detail

The 5.5 mm thick precision-machined aluminium baffle is engineered to eliminate vibration and provides a stoic platform for the powerful drivers to perform at their best.

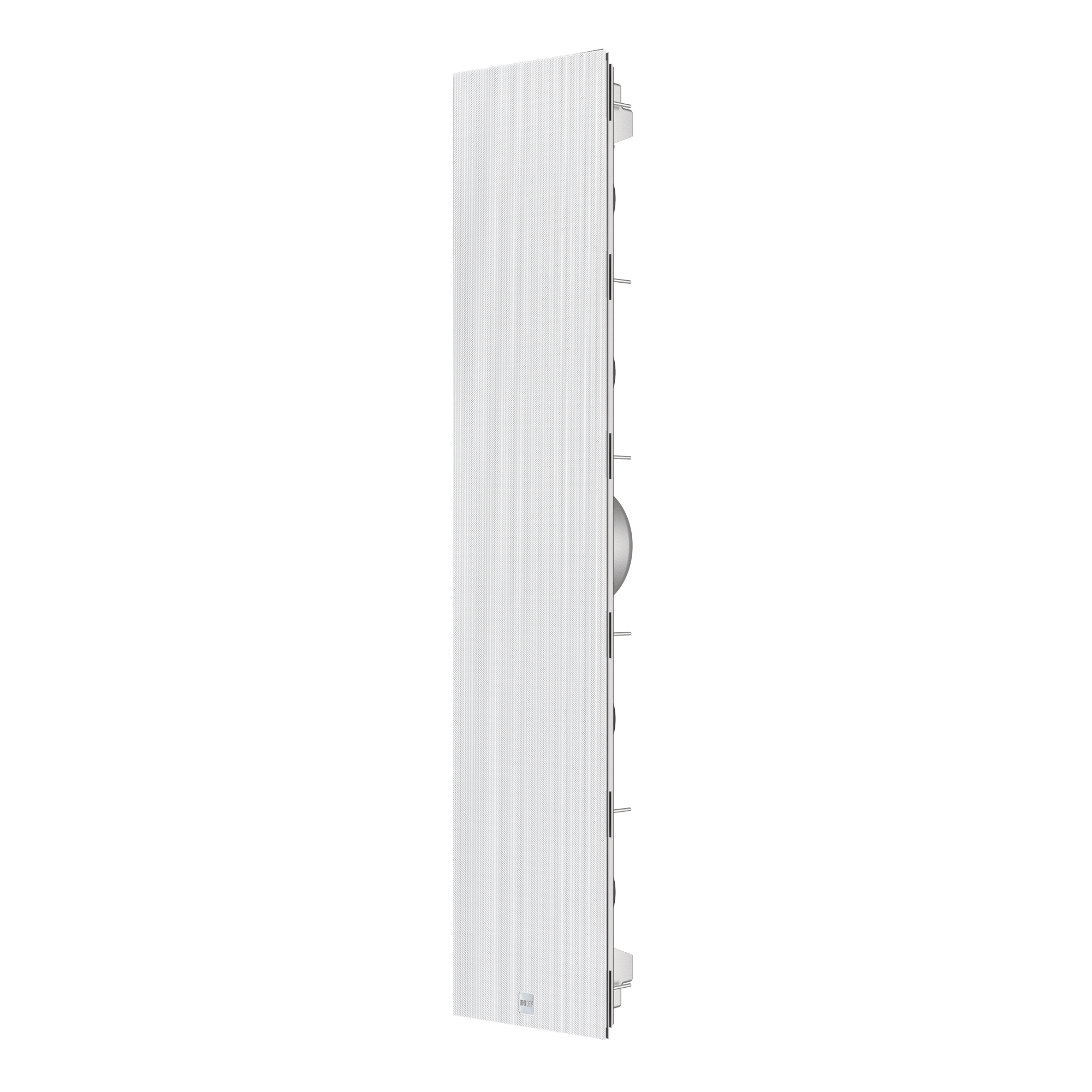

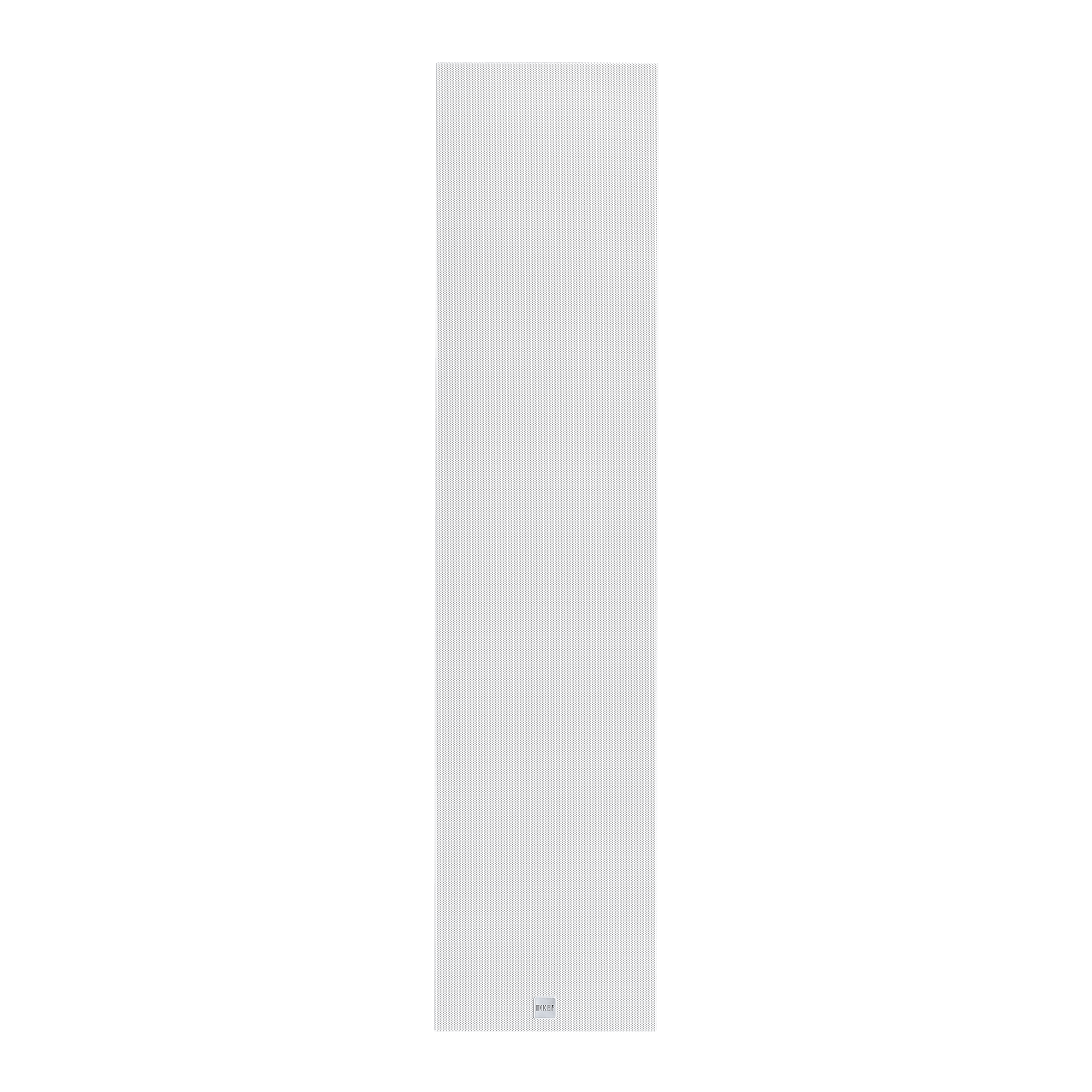

Hide your speakers, not your sound

The paintable magnetic metal grille and optional black cloth grille ensure the speaker seamlessly blends into the environment.

Finished to perfection

Available in Aluminium Silver, including tone matched Uni-Q and bass drivers.
Series
R Series
Frequency Response
40 - 28kHz (±6 dB) open-backed
Frequency Range
32 - 45kHz (-10 dB)
Sensitivity
89dB (2.83V/1m)
Nominal Impedance
4Ω
Nominal Coverage
150°
Maximum SPL Measured at 1m
110 dB
Drive Units
LF: 4 x 160mm (6.5in.)
MF: 160mm (6.5in.) Uni-Q
HF: 25mm (1in.) vented aluminium dome with Metamaterial Absorption Technology1
Crossover Frequency
640Hz, 2.6kHz
Recommended Amplifier Power
50 - 350 W
Mounting Depth From Surface
99mm (3.9in.)
Ideal Rear Volume
(L) 90
Minimum Rear Volume
(L) 40
Net Weight
18.7kg (41.1lbs.)
Certification
THX® Certified Ultra
Remarks
1 Metamaterial Absorption Technology is a joint development with Acoustic Metamaterials Group.
KEF reserves the right, in line with continuing research and development, to amend or change specifications. E&OE. THX, the THX logo, and Ultra are trademarks of THX Ltd. THX and the THX logo are registered in the U.S. and other jurisdictions.
Product External Dimensions (H x W x D)
1070 mm x 230 mm x 105.7 mm (42.13 in. x 9.06 in. x 4.16 in.)

What is in the box

  • Ci5160RLM-THX x 1
  • Metal grille x 1
  • Cutout template x 1
  • Gasket x 4
  • Hex drill tool x 1
  • Wall protection tape x 3
  • Warranty booklet
  • Manual

Please visit our Ci Software Download page for more details.
