Ci160RR-THX

€679,00

/ Piece

Architectural Speakers

Ci160RR-THX

THX^® Certified Ultra Architectural Speaker

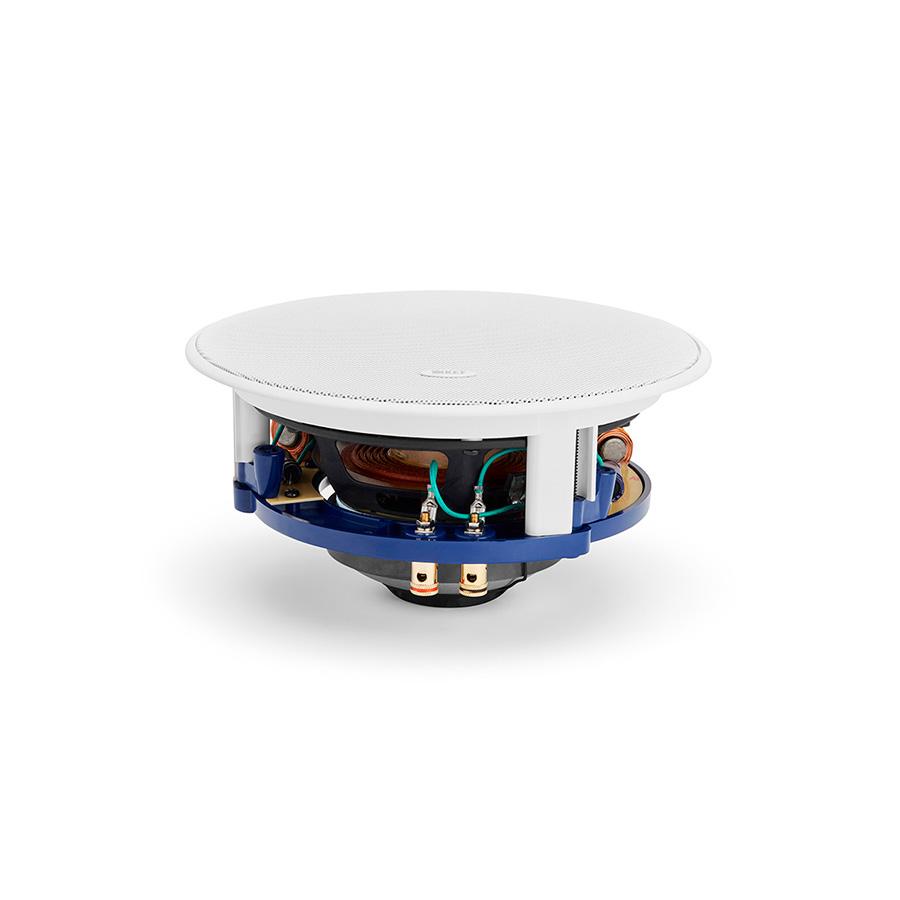

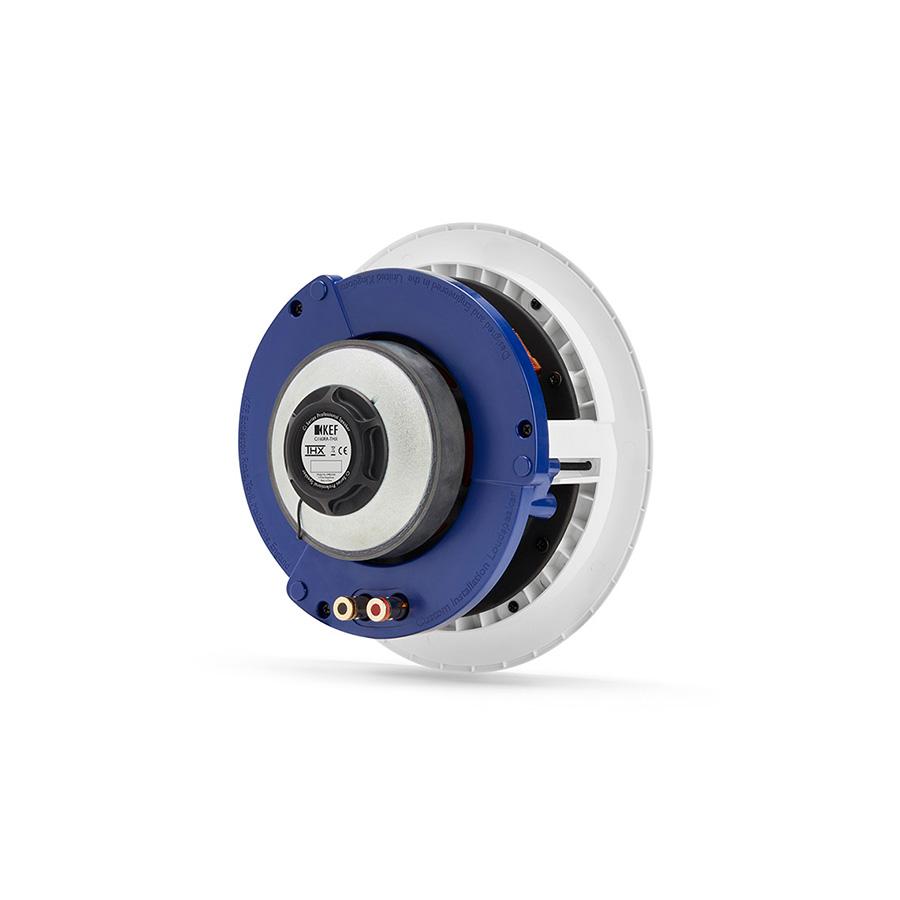

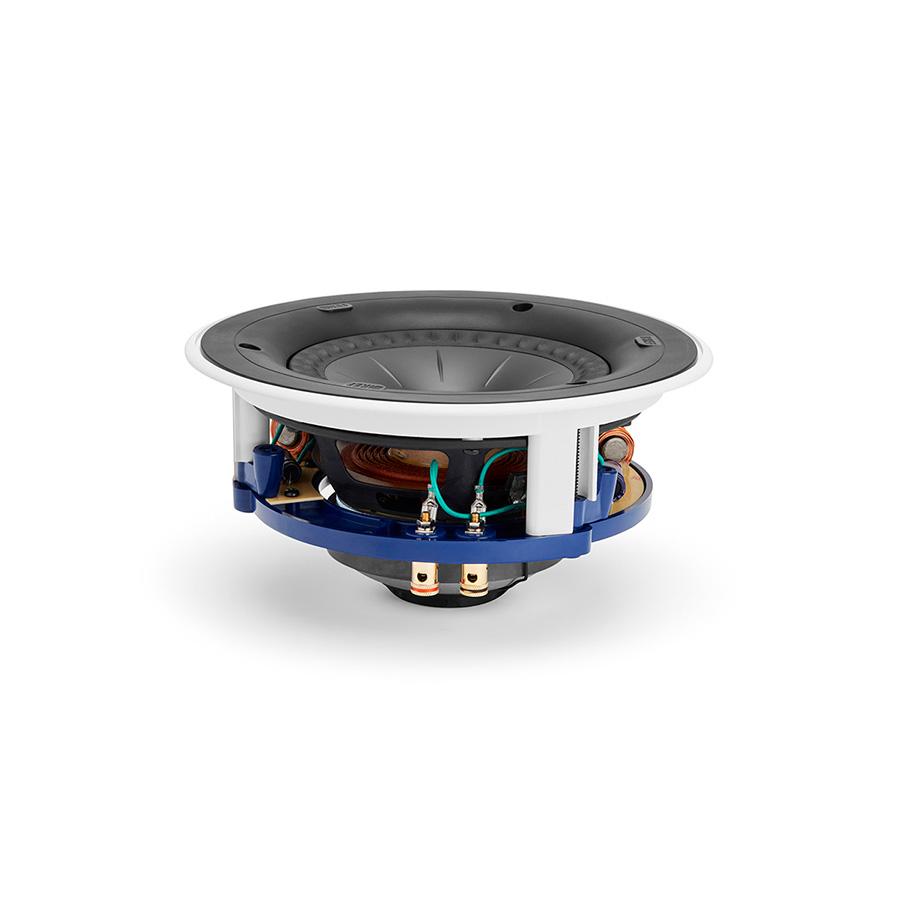

Ci160RR-THX# is an ultra-high-performance loudspeaker featuring KEF's signature Uni-Q technology, designed for discreet in-ceiling or in-wall installation. As part of the Ci-R Series and a THX® Certified Ultra architectural loudspeaker, Ci160RR-THX is engineered to maintain exceptional sound quality at high outputs.

€679,00

/ Piece

€679,00

/ Piece

Ci160RR-THX

Ci160RR-THX’s Uni-Q^® array boasts a 25mm high frequency tweeter mounted in the acoustic centre of a 165mm woofer, delivering the same, natural performance across the entire listening area. Plus, a Universal Cut-out system means its opening is the same as any 160mm KEF speaker for ease of installation and component selection.

#To meet THX Certified Ultra distortion specifications, install with 3 litre rear enclosure and set the A/V processor speaker size to small.

Specifications

Frequency Response

52Hz - 24kHz (±6DB) Open-Backed

Frequency Range

38Hz-30kHz (-10DB)

Sensitivity

90dB (2.83V/ 1m)

Nominal Impedance

4 Ohms

Nominal Coverage

130

Maximum SPL Measured at 1m

105 dB

Drive Units

LF: 165mm (6.5in.) Uni-Q
HF: 25mm (1in.)

Crossover Frequency

2.1kHz

Recommended Amplifier Power

10-190W

Recommended High-Pass Filter (HZ)

38Hz

Mounting Depth From Surface

110mm (4.33in.)

Ideal Rear Volume

(L) 20

Minimum Rear Volume

(L) 10

Net Weight

2.94kg (6.48Ibs.)

Certification

THX ULTRA

Remarks

KEF reserves the right, in line with continuing research and development, to amend or change specifications. E&OE. THX, the THX logo, and Ultra are trademarks of THX Ltd. THX and the THX logo are registered in the U.S. and other jurisdictions. All rights reserved.

Product External Dimensions (H x W x D)

234.6 mm x 115 mm x 234.6 mm (4.53 in. x 4.53 in. x 9.24 in.)
