REFERENCE 8b Subwoofer

  • Sale
  • Regular price €6.000 / piece
Tax included.


Twin 9 inches driver 'force-cancelling' subwoofer

Delivering exceptional bass precision and control with zero distortion, Reference 8b is a truly extraordinary subwoofer.

Hand-built in Maidstone, UK.


SOUND

REFERENCE 8b

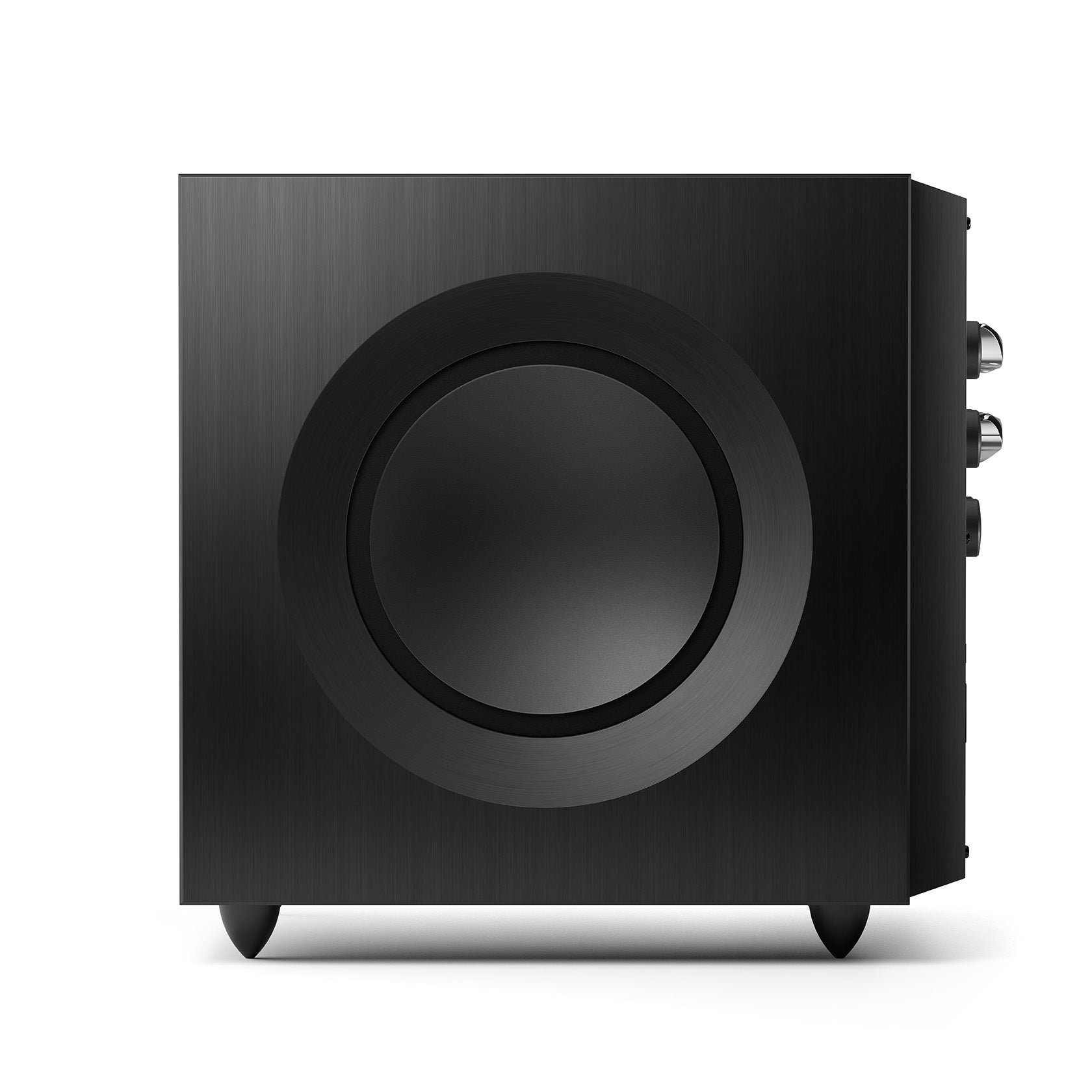

For power with accuracy the Reference 8b sub has two 500W Class D amplifiers, each driving a 228mm (9 inch) long-throw, ultra-low distortion driver. These are connected back-to-back in a heavily braced, acoustically inert cabinet. The result is low distortion bass with effortless body and weight.

design story

THE REFERENCE

Simply power up and pair using Bluetooth 4.0 with aptX® for sensational cable-free audio. Or, if you want to unlock the potential of your computer based audio or TV sound, including hi-res, choose the micro-USB or optical inputs.

The standard by which others are judged, and to which they aspire. The perfect reproduction of recorded sound is what KEF's legendary THE REFERENCE Series has always stood for. And after 40 years of continuous development, THE REFERENCE has earned its name as the yardstick of high-end acoustic engineering.

If you're a perfectionist when it comes to enjoying movies or music, it's the one name that towers above the rest. THE REFERENCE. It speaks for itself.

SPECIFICATIONS

The Details

Specifications

Cabinet Finish

Deep piano black



WEIGHT

34kg (75lbs.)



DIMENSION

H x W x D : 398 x 365 x 429 mm (15.7 x 14.4 x 16.8 in.)



Unit measurement

Pair



Finishes

Deep Piano Black

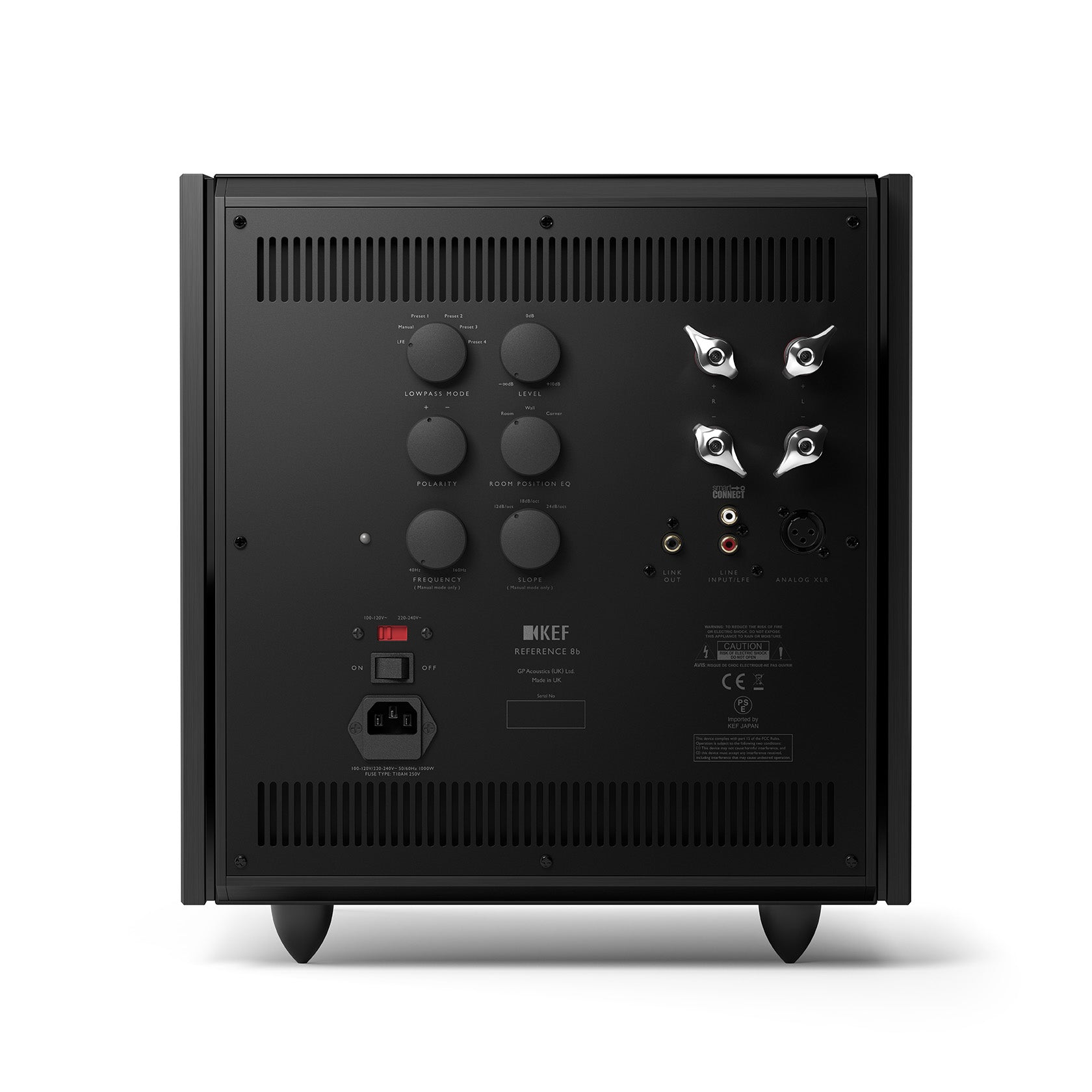

INPUTS

RCA phono sockets
Analog XLR socket
Speaker level inputs

FREQUENCY RANGE

Free Field: 18Hz (-6dB)



FREQUENCY RESPONSE

24Hz at 90dB output in free-space mode (±3dB)



Net internal volume

23L



MAXIMUM OUTPUT

110dB (peak sound pressure level at 1m 50Hz)



AMPLIFIER type

2 x 500 W Class D with switched mode power supply and DSP based control section


DRIVE UNITS

LF 2 x 225 mm (9in.)



Power requirements

100V - 120V / 220V - 240V ~50/60Hz



Power consumption

1000W



Link out

RCA phono socket



Variable low pass filter

Variable frequency: 40Hz to 160Hz
Variable slope: 12dB/oct, 18dB/oct, 24dB/oct
LFE mode: 350Hz, 18dB/oct



downloads



THE REFERENCE Brochure
THE REFERENCE Manual
THE REFERENCE 8b Manual
THE REFERENCE White Paper
THE REFERENCE Information Sheet





KEF reserves the right, in line with continuing research and development, to amend or change specifications. E&OE. * Measurement per unit
