Architectural Speakers

Ci3160REFM-THX

THX® CERTIFIED ULTRA
  • Sale
  • 8.000 € / each
Tax included.

THX® Certified Ultra Speaker with MAT™

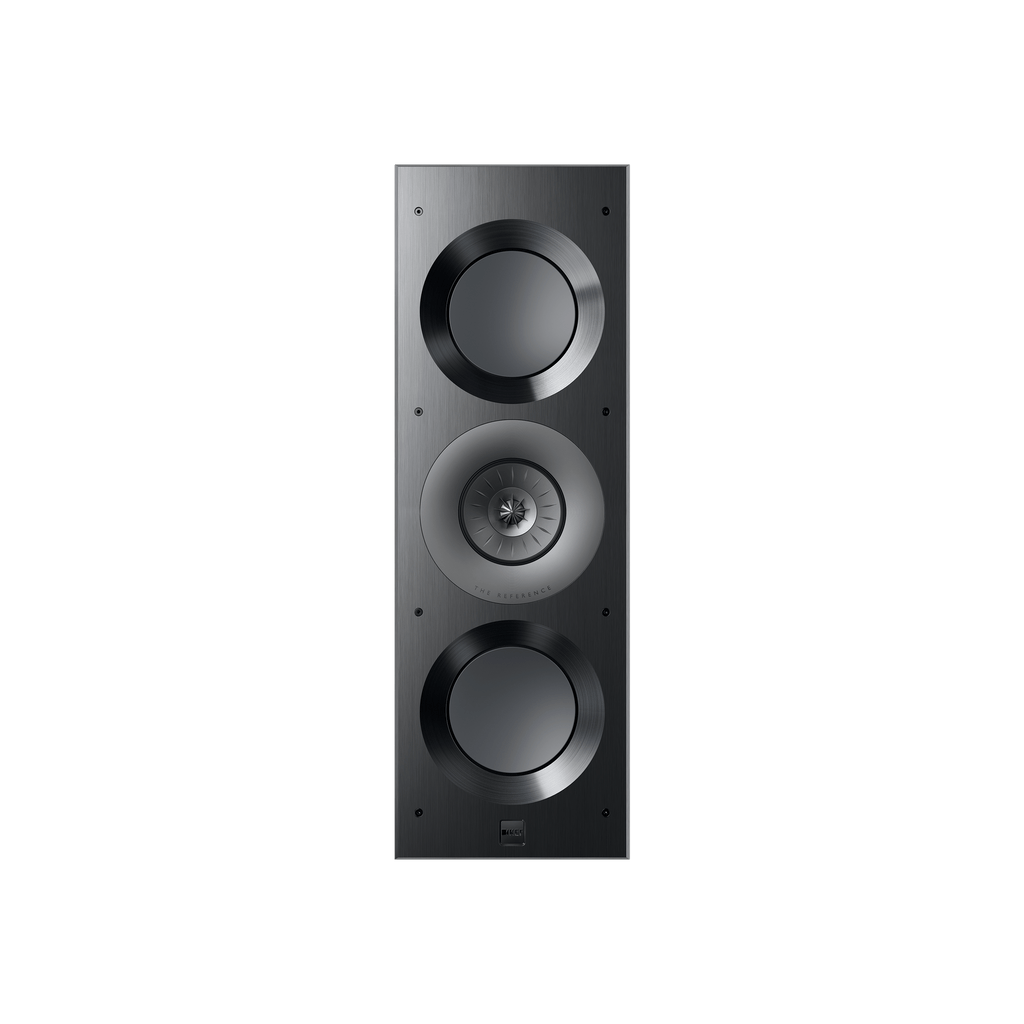

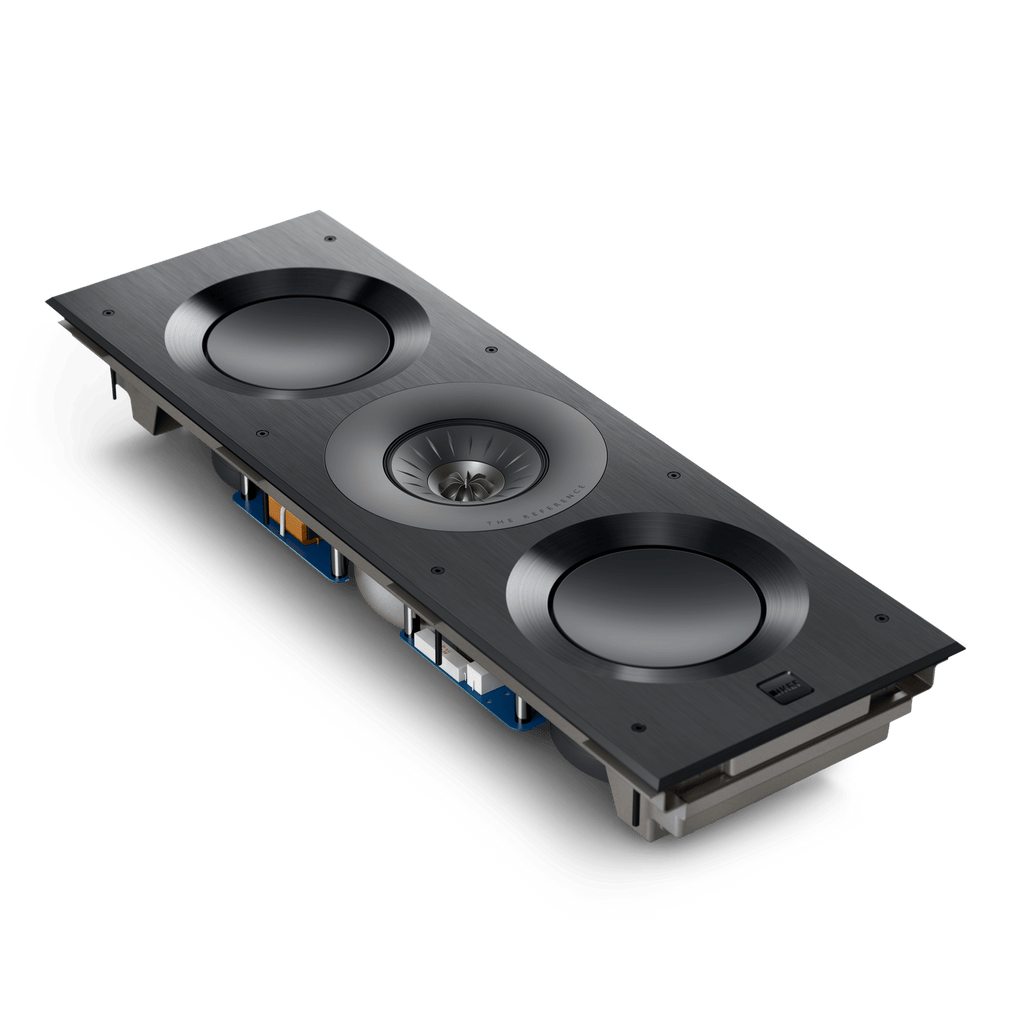

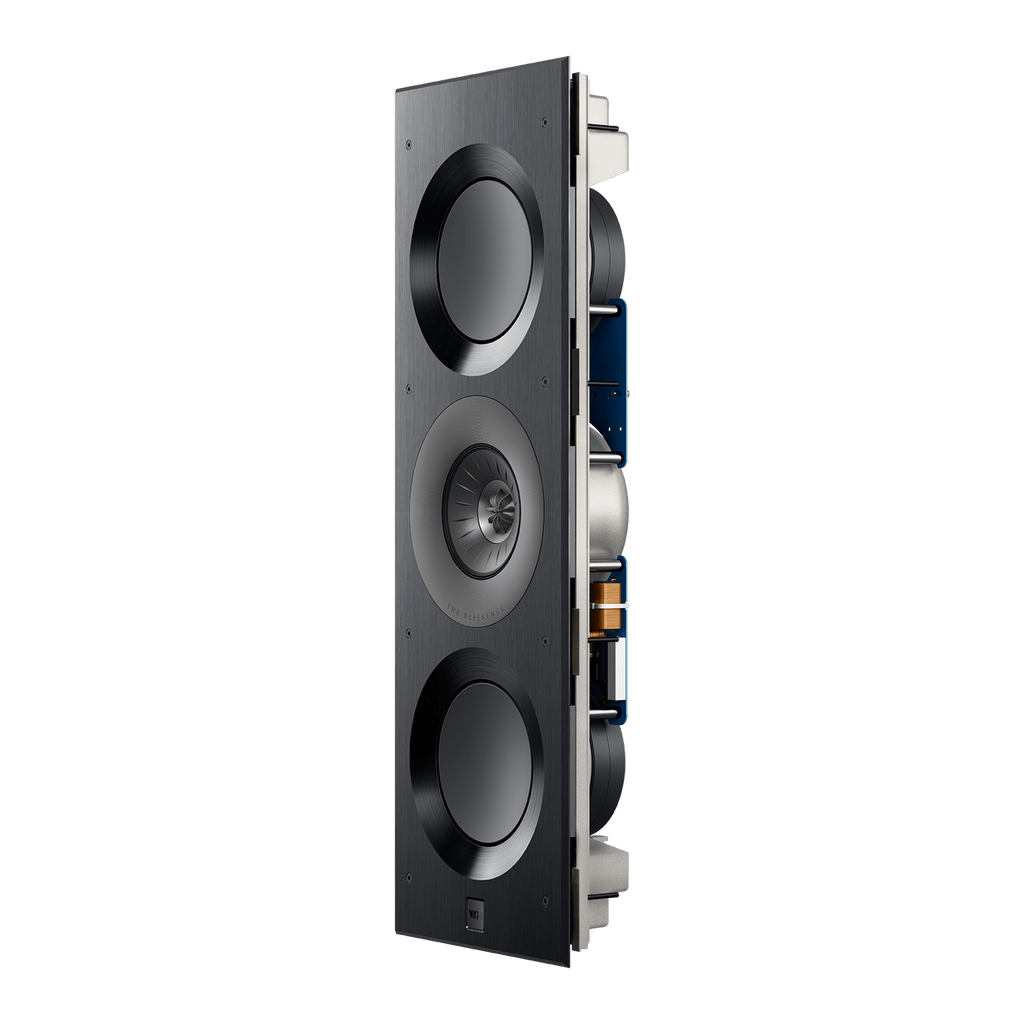

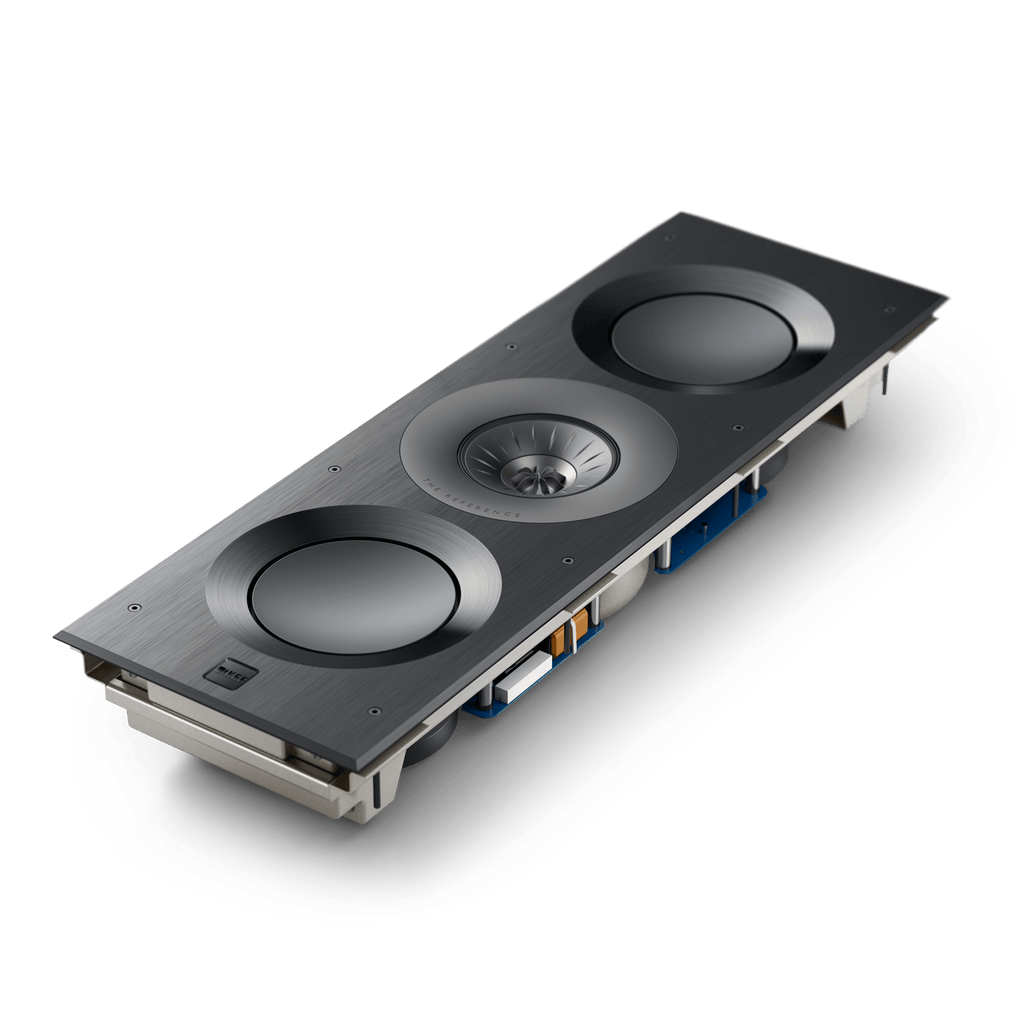

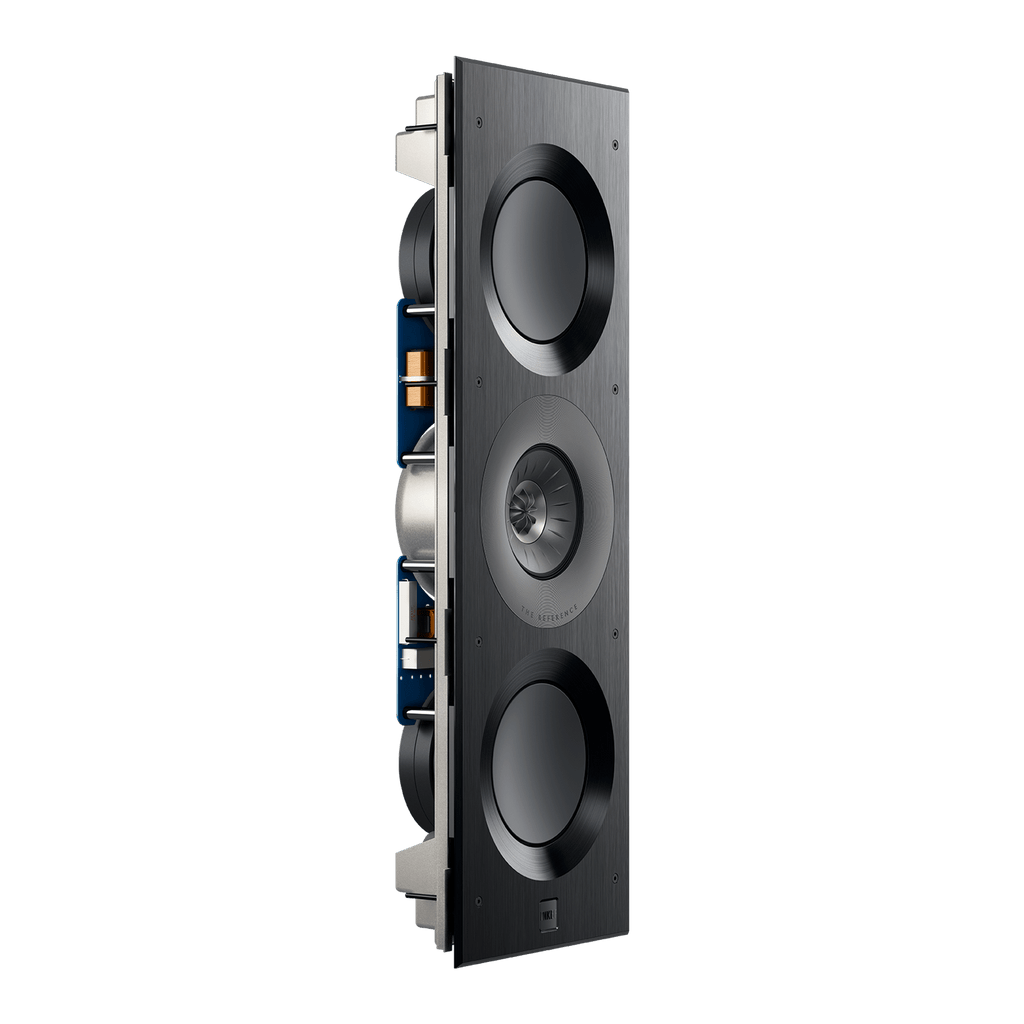

The in-wall Ci-Reference architectural speaker Ci3160REFM-THX is a world-class speaker that is handcrafted by the KEF engineers in Maidstone, UK. It does not only meet the standards set by The Reference, but also one of the highest THX® performance classes – THX® Certified Ultra. Together with the 12th generation Uni-Q driver array with Metamaterial Absorption Technology (MAT™), Ci3160REFM-THX delivers an immersive, high-fidelity soundstage with unmatched sonic excellence even for large home theatres and living rooms.
Enquiry
Where to Buy
Select a property

Select a property

Select a property

Select a property
Select a property

Select a property

Select a property

Select a property
Select a property

Select a property

Select a property

Select a property

Select a property

Select a property
Select a property
Grille Off
Grille On
Select a property
Select a property
Select a property
Select a property

Select a property

Select a property

Select a property
Select a property
Select a property
Select a property
Select a property

Select a property

Select a property

Select a property
Select a property
Select a property
Select a property
Select a property

Select a property

Select a property

Select a property
Select a property
Select a property
Select a property
Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property
Select a property
Select a property
Select a property
Select a property
Select a property

Select a property

Select a property

Select a property
Select a property
Select a property
Select a property
Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property
Select a property
Select a property
Select a property
Select a property
Select a property

Select a property

Select a property

Select a property
Select a property
Select a property
Select a property
Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property
Select a property
Select a property
Select a property
Select a property
Select a property

Select a property

Select a property

Select a property
Select a property
Select a property
Select a property
Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property
Select a property
Select a property
Select a property
Select a property
Select a property

Select a property

Select a property

Select a property
Select a property
Select a property
Select a property
Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property
Select a property
Select a property
Select a property
Select a property
Select a property

Select a property

Select a property

Select a property
Select a property
Select a property
Select a property
Select a property

Select a property

Select a property

Select a property

Realistic, high-fidelity sound

Featuring two 160mm (6.5in.) bass drivers, Ci3160REFM-THX delivers a clean, rich and highly articulate bass down to 35Hz. Together with the massive, vented motor system that was designed specifically for an in-wall environment, making Ci3160REFM-THX disappear into the room to leave an awe-inspiring, immersive experience.

THX® Certified

Ci3160REFM-THX delivers ultra-high performance with true theatre sound quality for large theatres and living rooms and it is THX® Certified Ultra.

Metamaterial Absorption Technology

Absorbs 99% of the unwanted sound

Handcrafted in UK

As our high-end speakers, Ci-Reference is designed, engineered, and hand-built in Maidstone, UK

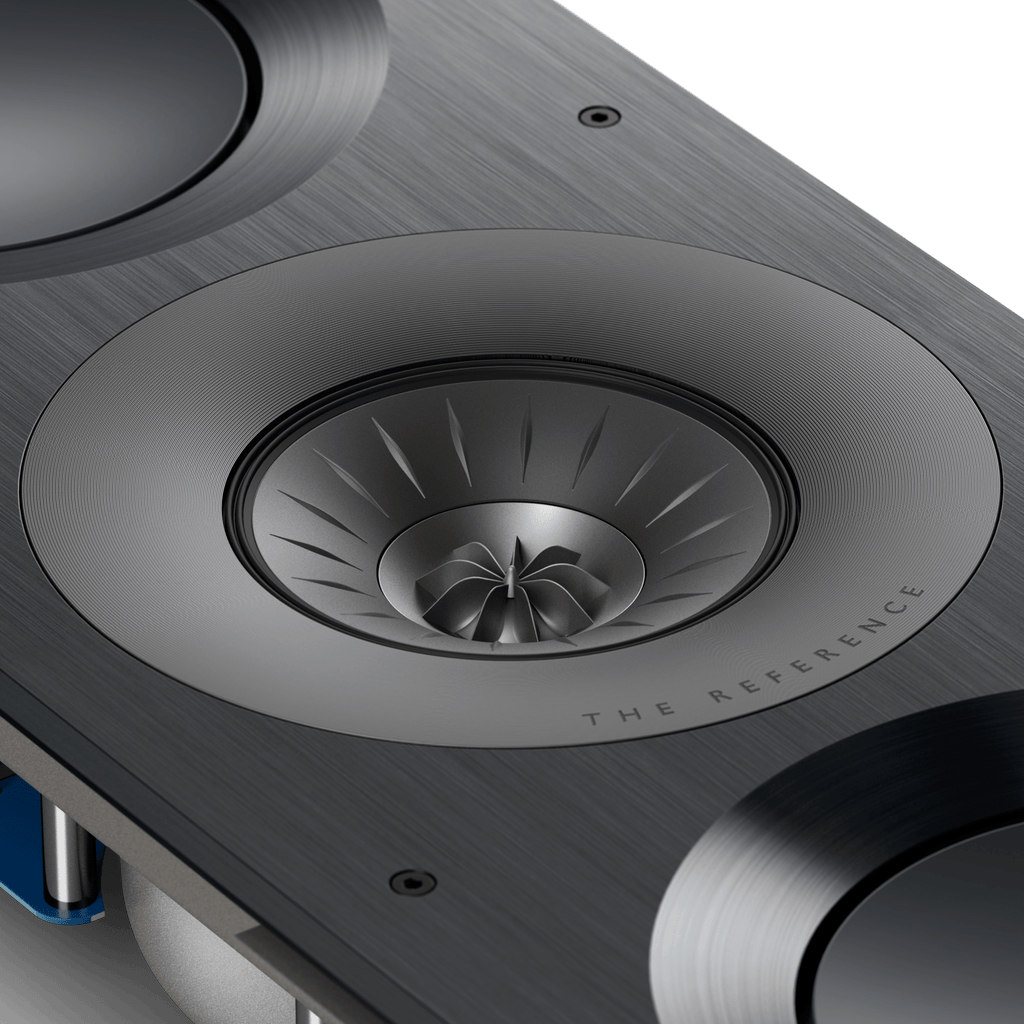

Uni-Q®

Acts as a single point source to enlarge the 'sweet spot' and disperse sound more evenly.

Finished to perfection

Available in Aluminium Black/Grey, a hairline finished aluminium baffle in black, with the Uni-Q driver array in grey.

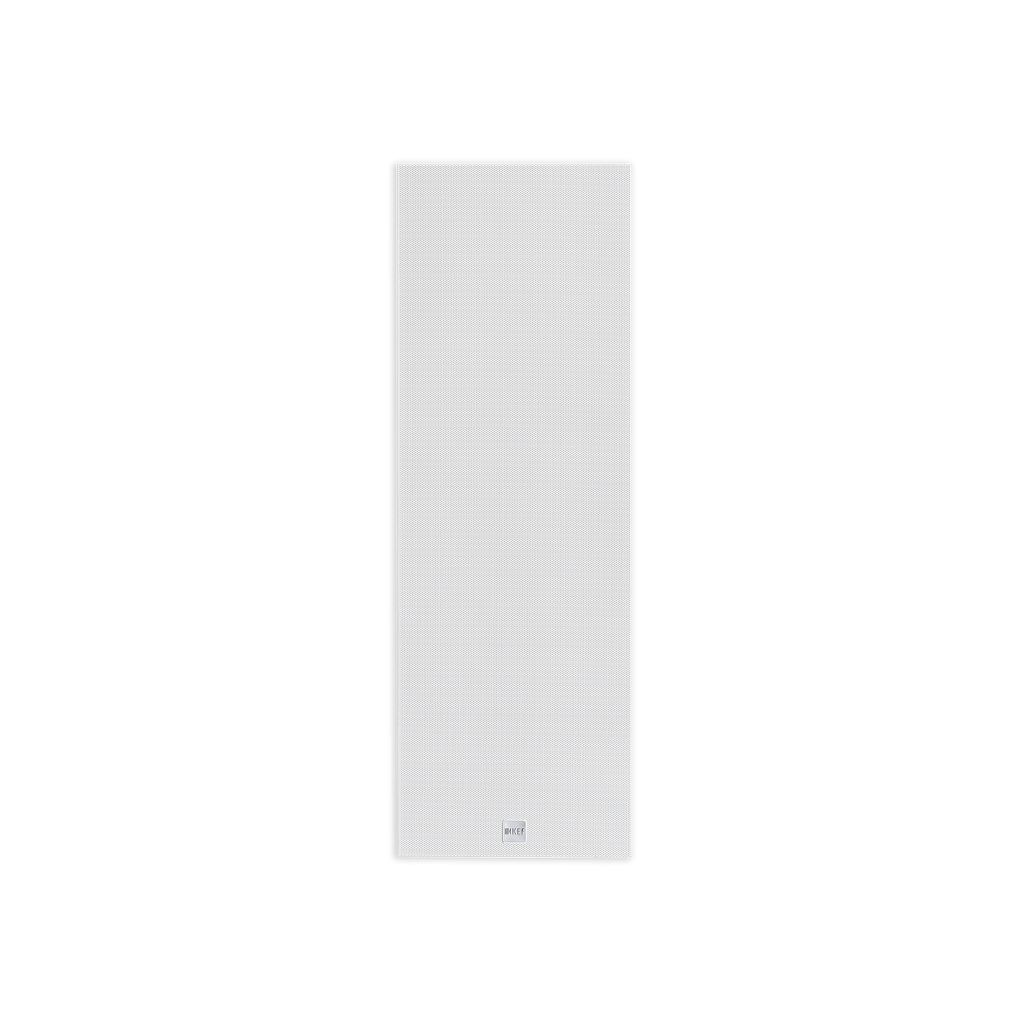

Hide your speakers, not your sound

The paintable magnetic metal grille and optional black cloth grille ensure the speaker seamlessly blends into the environment.

Total attention to detail

The 11mm thick precision-machined aluminium baffle is engineered to eliminate vibration and provides a stoic platform for the powerful drivers to perform at their best.

See it from all angles
Looks as great as it sounds, use our 360o interactive spin function to check out all the well-considered details of Ci3160REFM-THX.
*Actual product colour may vary from the AR version shown.
**This feature is not supported on Chrome for iOS devices.

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

The Details

FEATURES

accordion open

SPECIFICATIONS

accordion open
Nominal Impedance
4Ω
Sensitivity (2.83V/1m)
89dB
Frequency Response (±6 dB) open-backed
40 - 28kHz
Frequency Range (-10 dB)
32 - 45kHz
Nominal Coverage (degrees)
150°
Crossover Frequency
600Hz, 3000Hz
Drive Units
LF: 2 x 160mm (6.5in.)
MF: 125mm (5.25in.) Uni-Q
HF: 25mm (1in.) vented aluminium dome with Metamaterial Absorption Technology
Recommended Amplifier Power
50 - 350 W
Recommended High-pass Filter (Hz)
35Hz - 80Hz
Product External Dimensions (H X W X D)
680 x 230 x 105.7mm (26.77 x 9.06 x 4.16in.)
Cut-out Dimensions (H X W)
660 x 209mm (25.98 x 8.23in.)
Net Weight
13.6kg (29.92lbs.)
Mounting Depth From Surface
99mm (3.9in.)
Optional Rough In Frame
RIF3160L
Ideal Rear Volume (L)
60
Minimum Rear Volume (L)
30
Max SPL (dB)
110dB
Certification
THX Cetified Ultra
Wall Thickness (Maximum)
40mm (1.58in.)
Wall Thickness (Minimum)
6mm  (0.24in.)
Remarks

1 Metamaterial Absorption Technology is a joint development with Acoustic Metamaterials Group.
KEF reserves the right, in line with continuing research and development, to amend or change specifications. E&OE. THX, the THX logo, and Ultra are trademarks of THX Ltd. THX and the THX logo are registered in the U.S. and other jurisdictions.
