Boasting a formidable 200mm (8in.) subwoofer incarnation of our ultra-thin T Series woofer driver, the Ci200TRb opens up new possibilities for enjoying KEF’s uncompromised sound quality where installation space is at a premium.

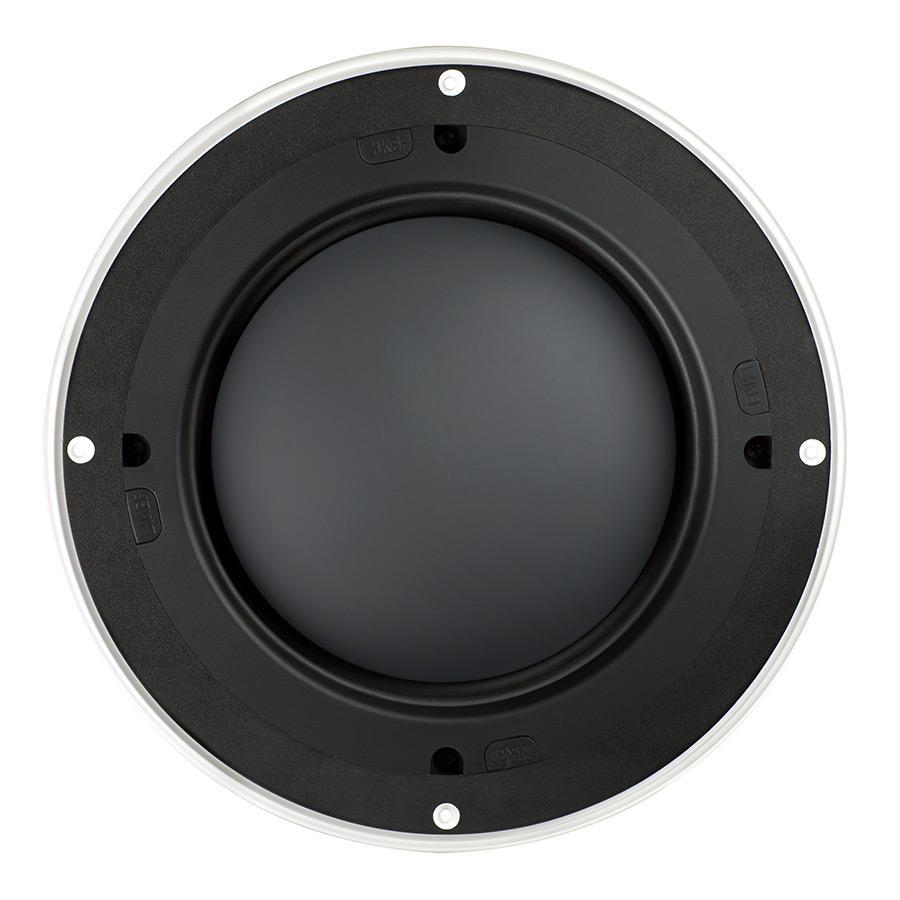

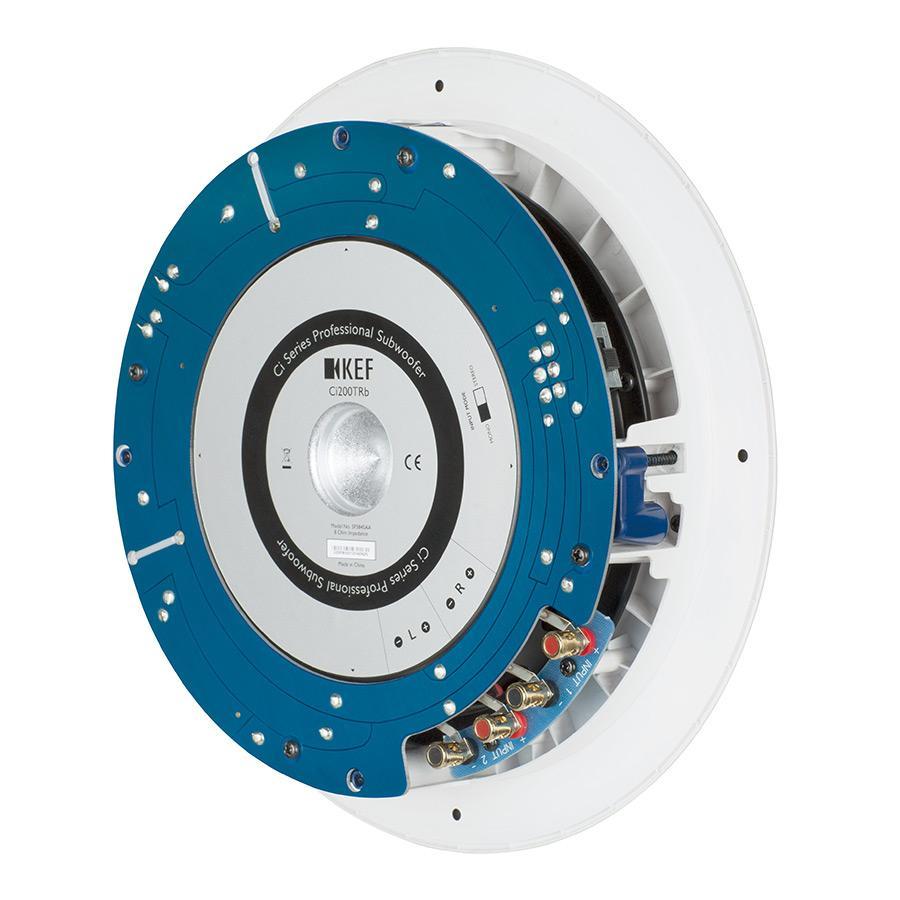

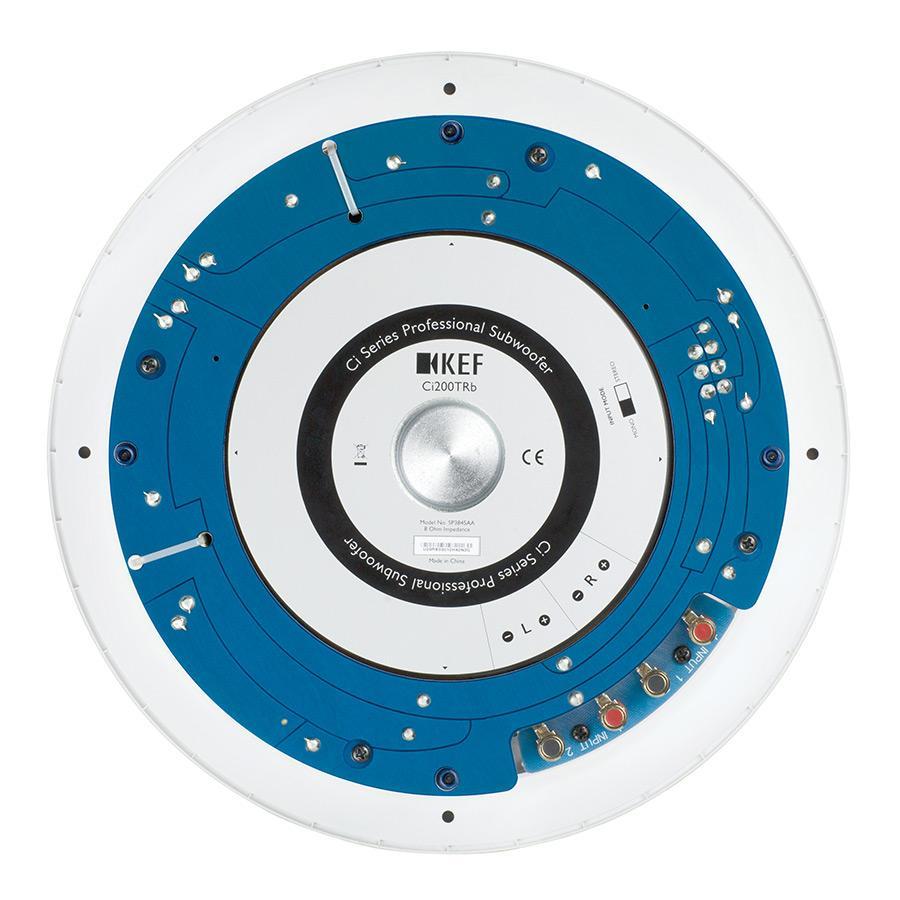

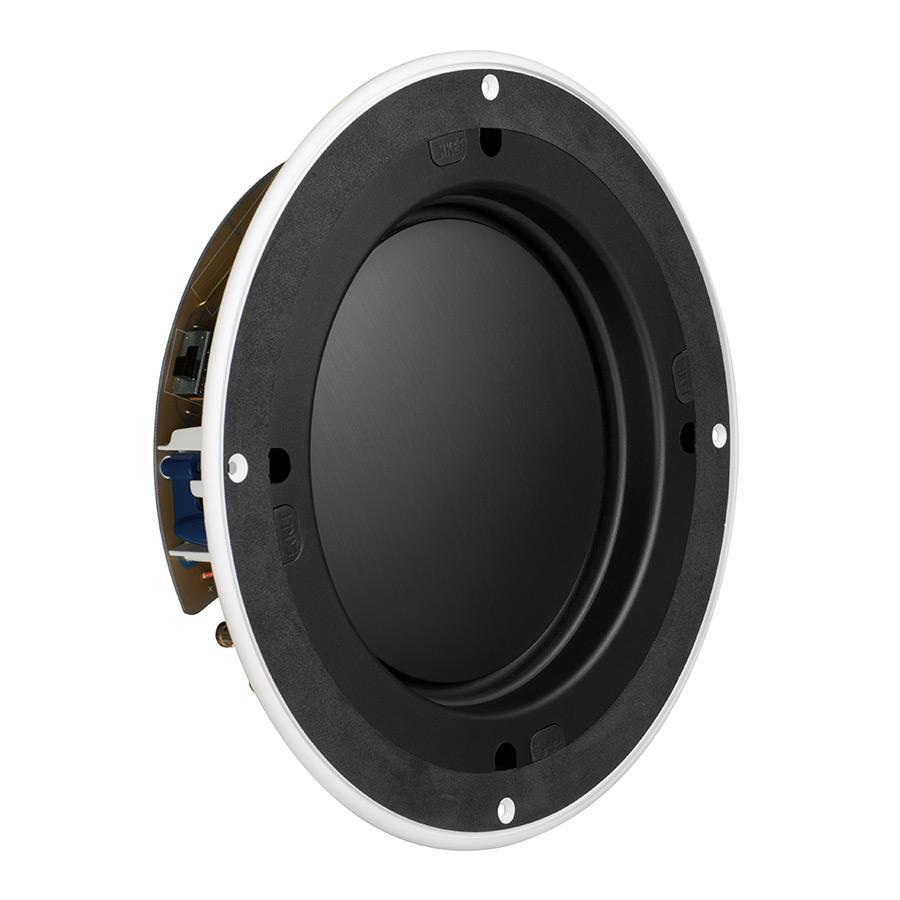

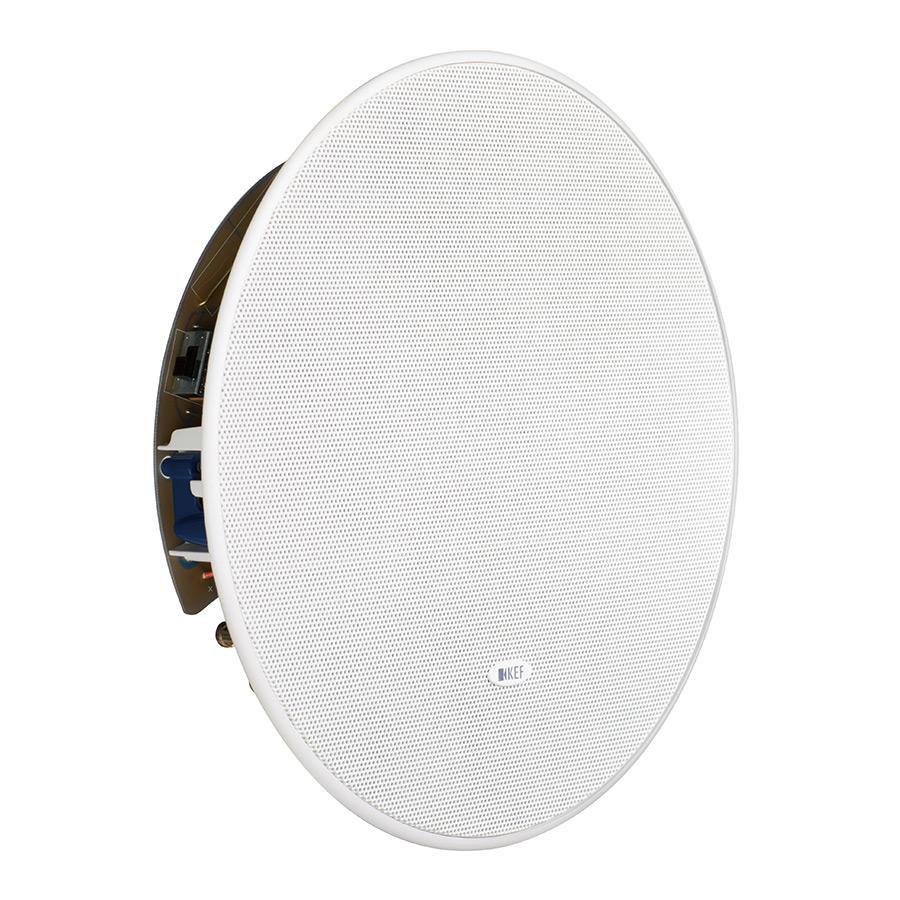

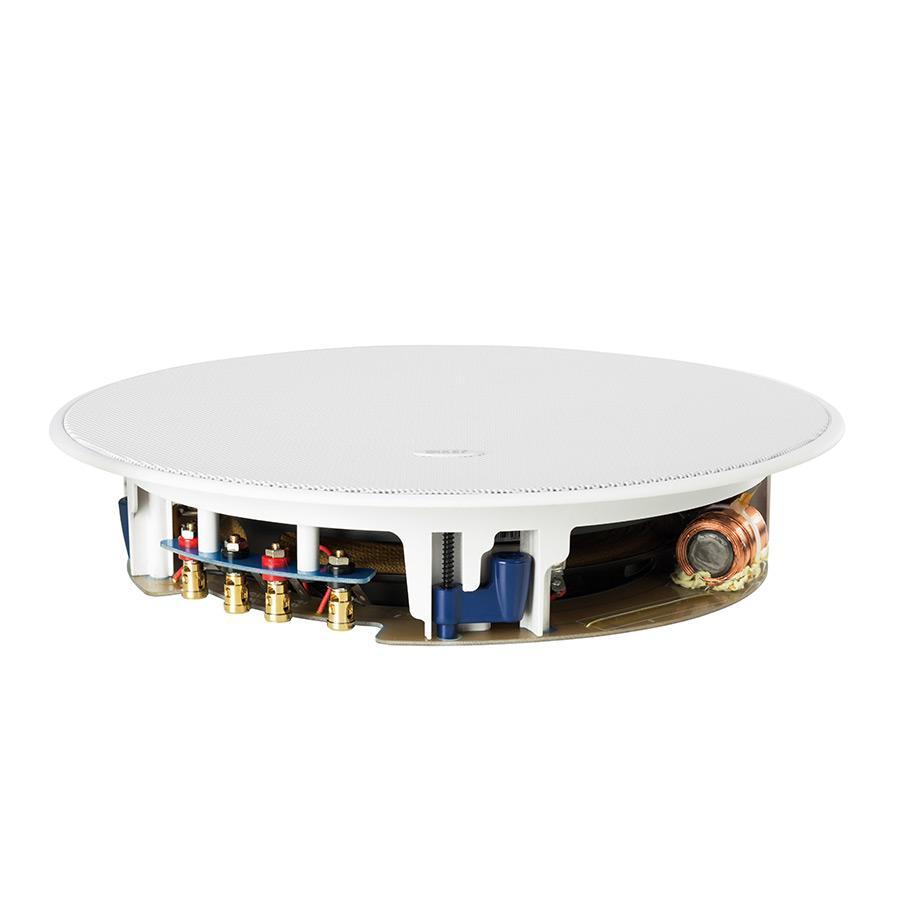

Ci200TRb
Boasting a formidable 200mm (8in.) subwoofer incarnation of our ultra-thin T Series woofer driver, the Ci200TRb opens up new possibilities for enjoying KEF’s uncompromised sound quality where installation space is at a premium.
Requiring less than 59mm (2 3/8 in.) of mounting depth, the Ci200TRb fits snugly in very narrow ceiling or wall spaces and is therefore specified for demanding applications such as today’s luxury high-rise apartments or your music system.
When used in passive mode, the Ci200TRb adds impressive depth of bass when matched with our Ci160TR round or Ci160TS square speakers. In active mode, powered by KEF’s KASA500 System Amplifier, the Ci200TRb delivers thunderous output expected from a subwoofer in today’s dynamic home theaters.
Requiring less than 59mm (2 3/8 in.) of mounting depth, the Ci200TRb fits snugly in very narrow ceiling or wall spaces and is therefore specified for demanding applications such as today’s luxury high-rise apartments or your music system.
When used in passive mode, the Ci200TRb adds impressive depth of bass when matched with our Ci160TR round or Ci160TS square speakers. In active mode, powered by KEF’s KASA500 System Amplifier, the Ci200TRb delivers thunderous output expected from a subwoofer in today’s dynamic home theaters.
The Details
FEATURES
Key Features

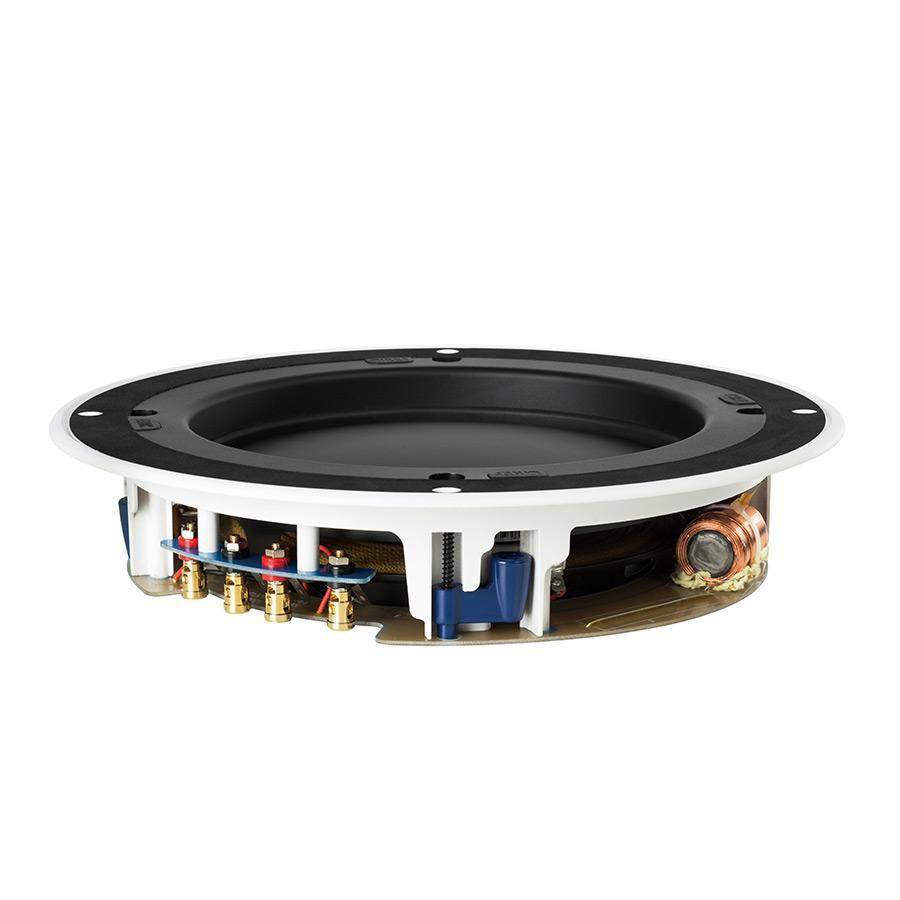

<59mm (2 3/8in.) mounting depth allows fitment to very restricted cavities
Ultra-slim 200mm (8in.) subwoofer unit with excellent bass extension

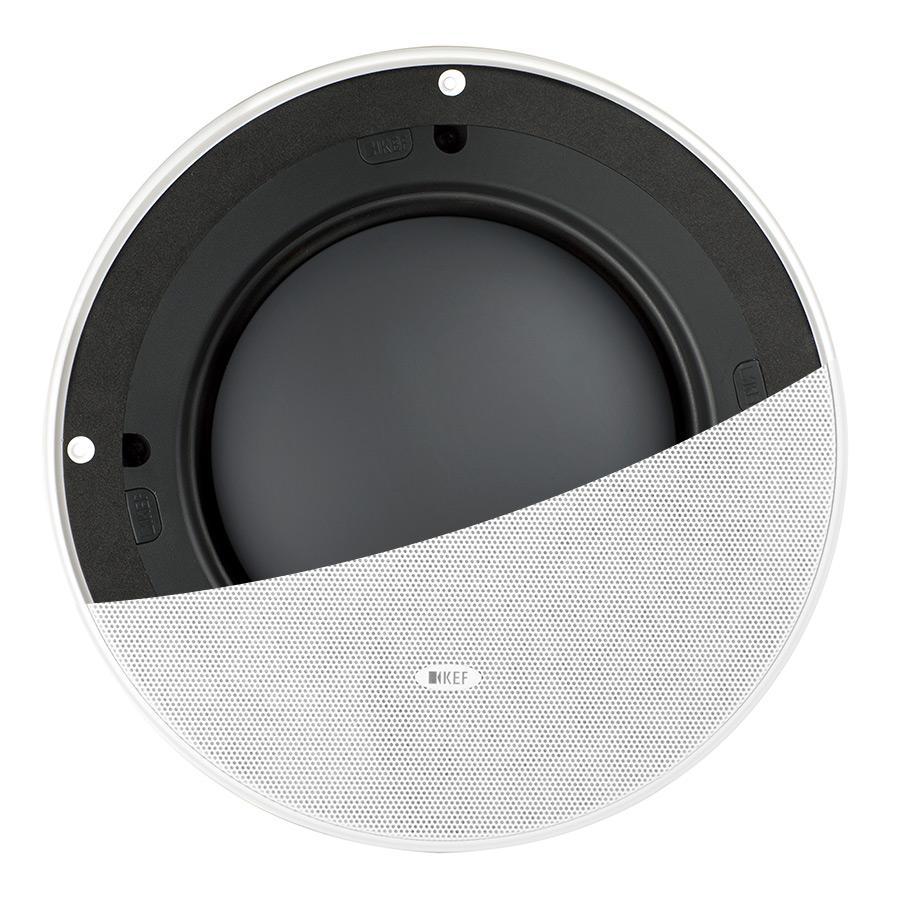

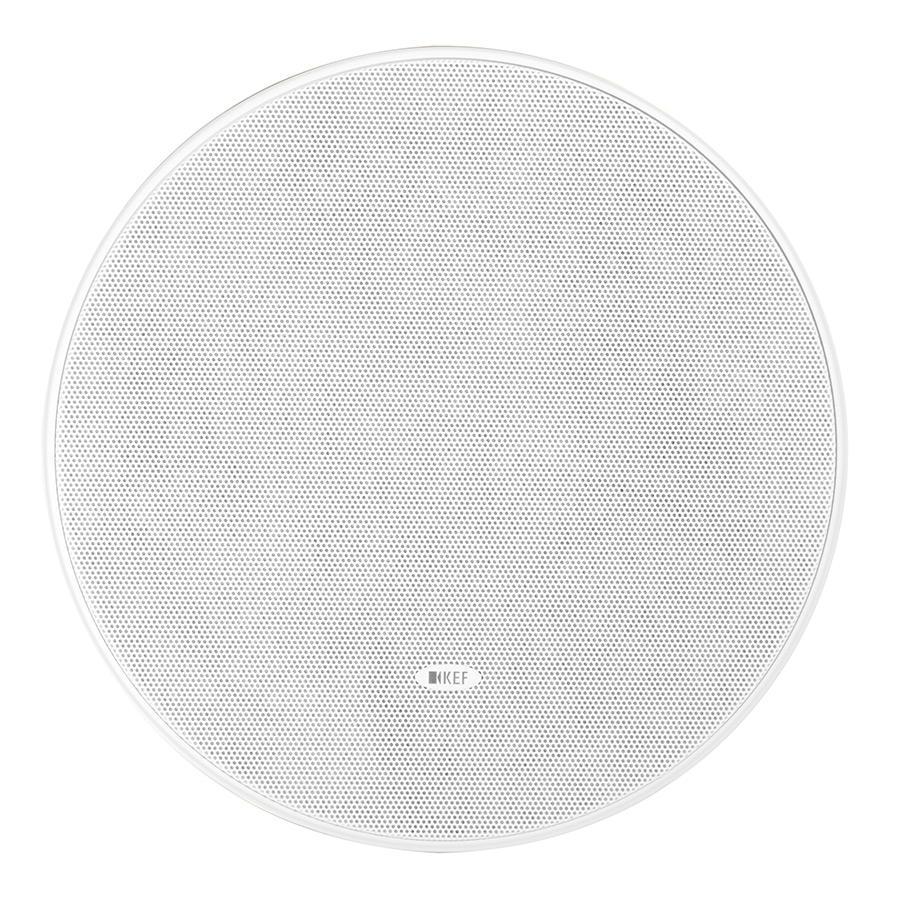

Paintable Ultra-Thin Bezel (UTB) and magnetic grille to blend unobtrusively with décor
Fast, versatile installation on virtually any surface via dogleg
Can be used as mono or stereo subwoofer
Can be used in passive mode with internal crossover or active mode with KEF’s KASA500 System Amplifier
Ultra-slim 200mm (8in.) subwoofer unit with excellent bass extension
Paintable Ultra-Thin Bezel (UTB) and magnetic grille to blend unobtrusively with décor
Fast, versatile installation on virtually any surface via dogleg
Can be used as mono or stereo subwoofer
Can be used in passive mode with internal crossover or active mode with KEF’s KASA500 System Amplifier
SPECIFICATIONS
Nominal Impedance
2 x 8 Ohm - Stereo Mode
16 Ohm - Mono Mode
16 Ohm - Mono Mode
Sensitivity
87dB (2.83V/ 1m)
Frequency Response
42Hz-120Hz - Passive
32Hz-120Hz - With Kasa500
32Hz-120Hz - With Kasa500
Drive Units
LF: 200mm (8 in.)
Recommended Amplifier Power
10-125W - Passive
KASA500 - With Kasa500
KASA500 - With Kasa500
Product External Dimension (H X W X D)
Diamater: 290 mm (11.42 in.)
Depth: 63mm (2.48 in.)
Depth: 63mm (2.48 in.)
Cut-Out Dimensions (H X W)
240mm (9.45 in.)
Mounting Thickness
Ceiling Thickness (Maximum): 26mm (1.03 in.)
Ceiling Thickness (Minimum): 4mm (0.16 in.)
Ceiling Thickness (Minimum): 4mm (0.16 in.)
Mounting Depth From Surface
59mm (2.32 in.)
Optional Rough In Frame
RIF200R
Optional Rear Enclosure
RNC200R
Net Weight
1.7kg (3.75 lbs)
Unit Measurement
Piece
KEF reserves the right, in line with continuing research and development, to amend or change specifications. E&OE.
Please visit our Ci Software Download page for more details.
