Features KEF’s patented Uni-Q driver array

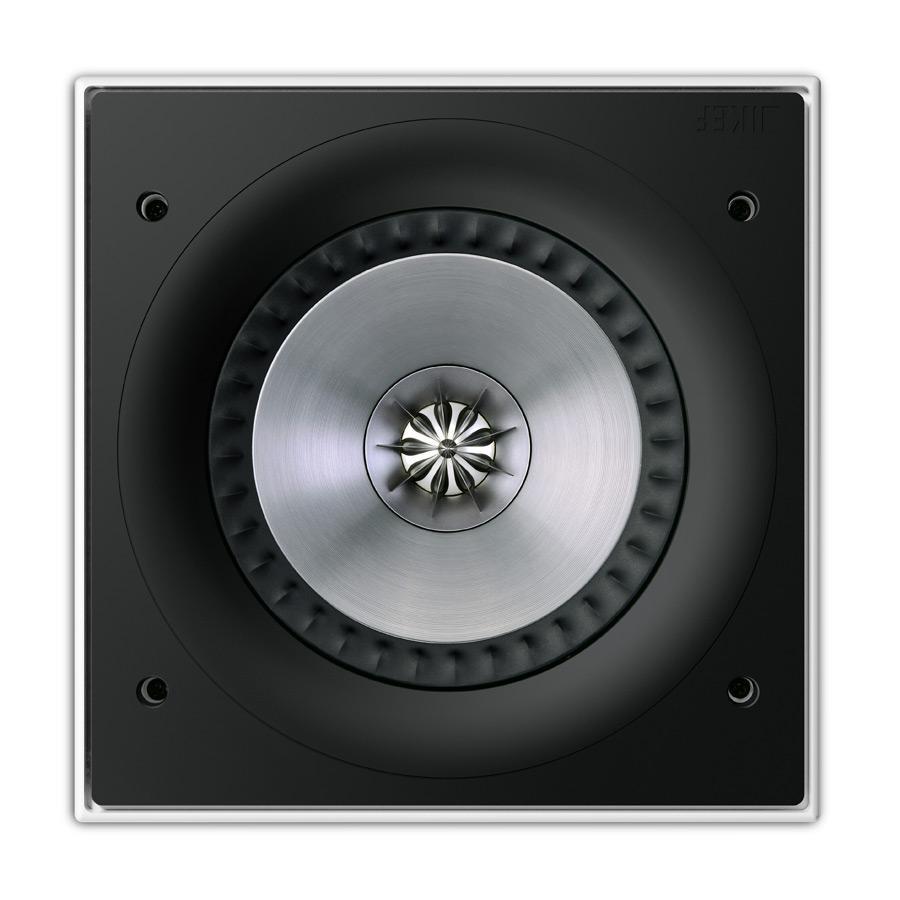

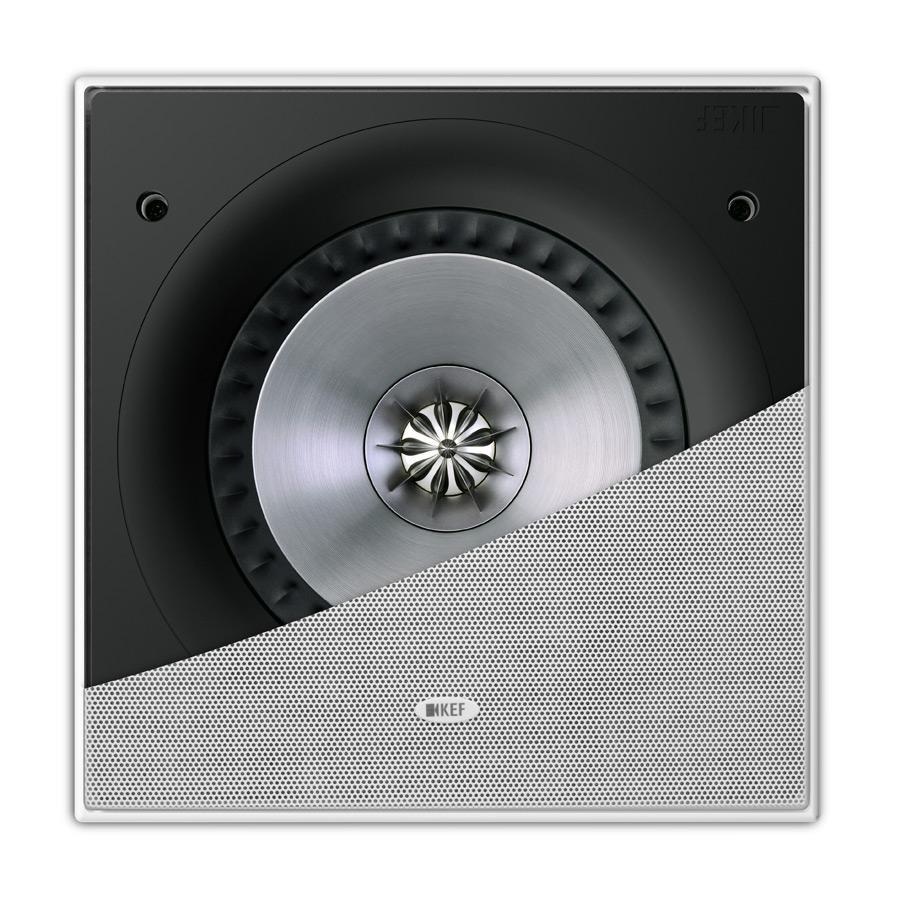

With a 38mm(1.5inch) tweeter voice coil coupled to a vented aluminium dome with tangerine waveguide, and a woofer with absolutely massive magnet and Z-flex surround, the KEF Ci200RS-THX is capable of delivering a magical musical theatre experience even in the largest of rooms.
Ci200RS-THX
For the most versatile range in custom installed Extreme Home Theatre, the formidable Ci-R Series has a good portion of acoustic capabilities that derived from KEF's flagship The Reference, together with all the technological innovations that are developed for in-wall and in-ceiling use, making high fidelity sound more accessible for home theatres in different sizes.
With a 38mm(1.5inch) tweeter voice coil coupled to a vented aluminium dome with tangerine waveguide, and a woofer with absolutely massive magnet and Z-flex surround, the KEF Ci200RS-THX is capable of delivering a magical musical theatre experience even in the largest of rooms.
With a 38mm(1.5inch) tweeter voice coil coupled to a vented aluminium dome with tangerine waveguide, and a woofer with absolutely massive magnet and Z-flex surround, the KEF Ci200RS-THX is capable of delivering a magical musical theatre experience even in the largest of rooms.
Ci200RS-THX is a THX Certified Ultra in-wall speaker. A deep understanding of the filmmaking process and surround sound is at the very heart of every THX certified 2.1, 5.1 and 7.1 speaker system. Engineered with design characteristics of professional studio speakers, THX recreates the tonal balance of the filmmaker's final mix in your living room. The results? Action sequences are impactful, and dialogue-driven moments are natural and engaging.
THX certified in-wall speakers deliver the appropriate frequency response and high output and imaging quality of a traditional box speaker. This provides the best of both worlds - THX surround sound performance from components that blend harmoniously with any room decor.
THX certified in-wall speakers deliver the appropriate frequency response and high output and imaging quality of a traditional box speaker. This provides the best of both worlds - THX surround sound performance from components that blend harmoniously with any room decor.
The Details
SPECIFICATIONS
Nominal Impedance
4 Ohms
Sensitivity
90dB (2.83V/ 1m)
Frequency Response
33Hz - 28kHz (±6dB) open-backed
Crossover Frequencies
2.2kHz
Drive Units
LF: 200mm (8in.) Uni-Q
HF: 38mm (1.5in.)
HF: 38mm (1.5in.)
Recommended Amplifier Power
10-190W
Product External Dimension (H X W X D)
273 x 273 x 132.6 mm (10.75 x 10.75 x 5.22 in.)
Cut-Out Dimensions (H X W)
240 x 240 mm (9.45 x 9.45 in.)
Mounting Depth From Surface
127mm (5in.)
Optional Rough In Frame
RIF200S
Net Weight
3.6kg (7.94lbs)
Unit Measurement
Piece
Document Download
Remarks
KEF reserves the right, in line with continuing research and development, to amend or change specifications. E&OE. THX, the THX logo, and Ultra are trademarks of THX Ltd. THX and the THX logo are registered in the U.S. and other jurisdictions. All rights reserved.
KEF reserves the right, in line with continuing research and development, to amend or change specifications. E&OE.
