Ci160.2CS in-wall speaker allows sound to disperse more evenly throughout the room. The extremely shallow mounting depth allows you to install the Ci160.2CS where other speakers in its class won’t fit.

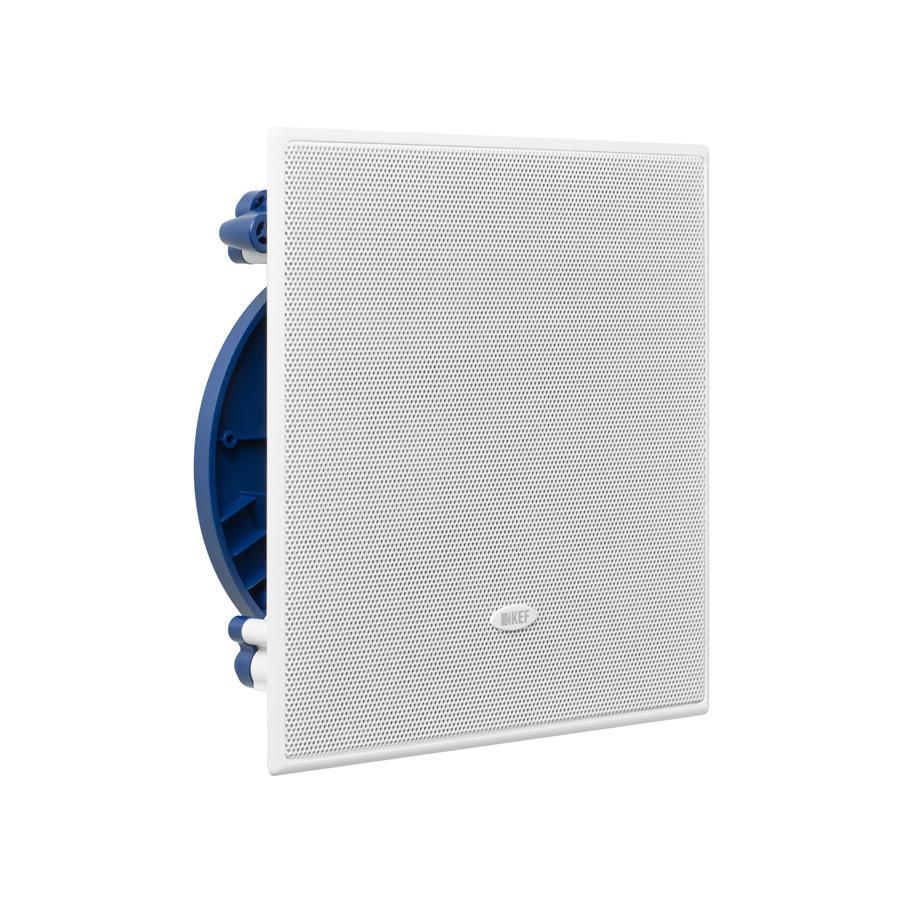

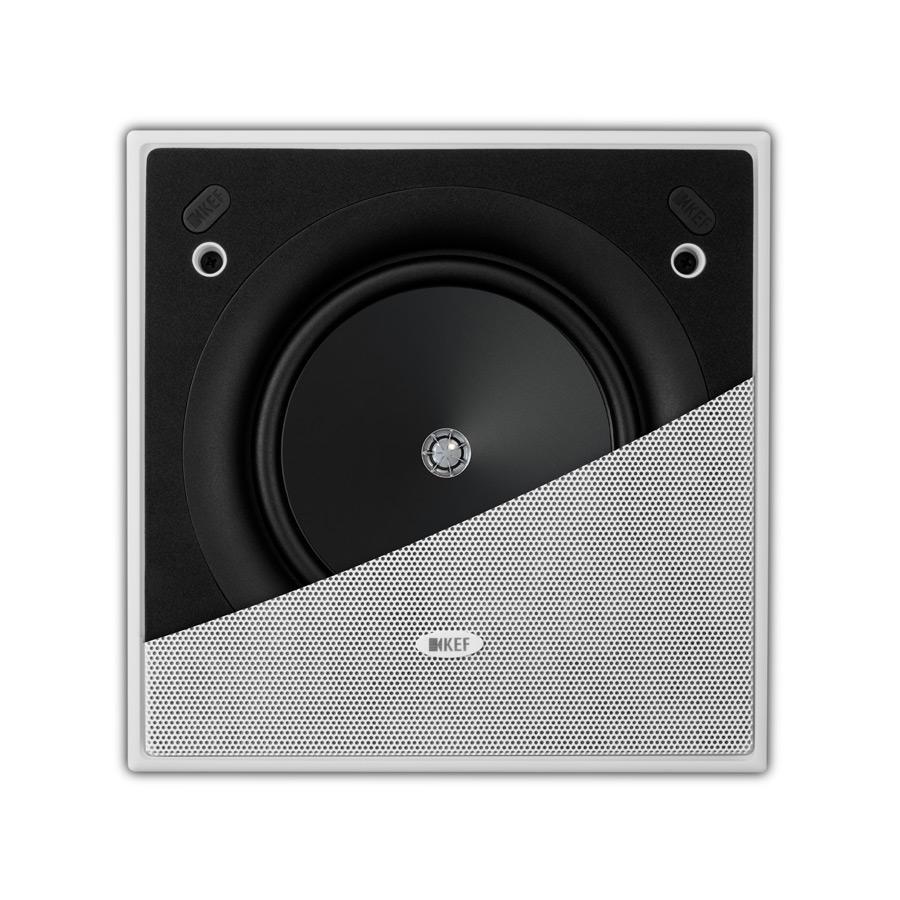

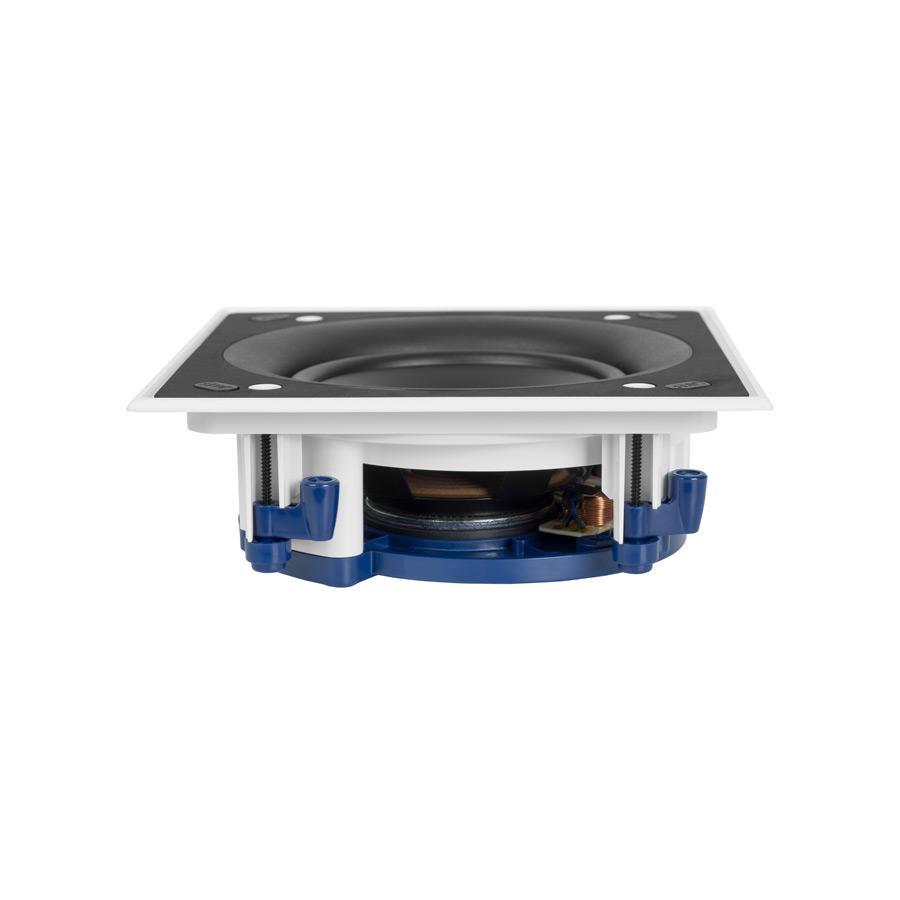

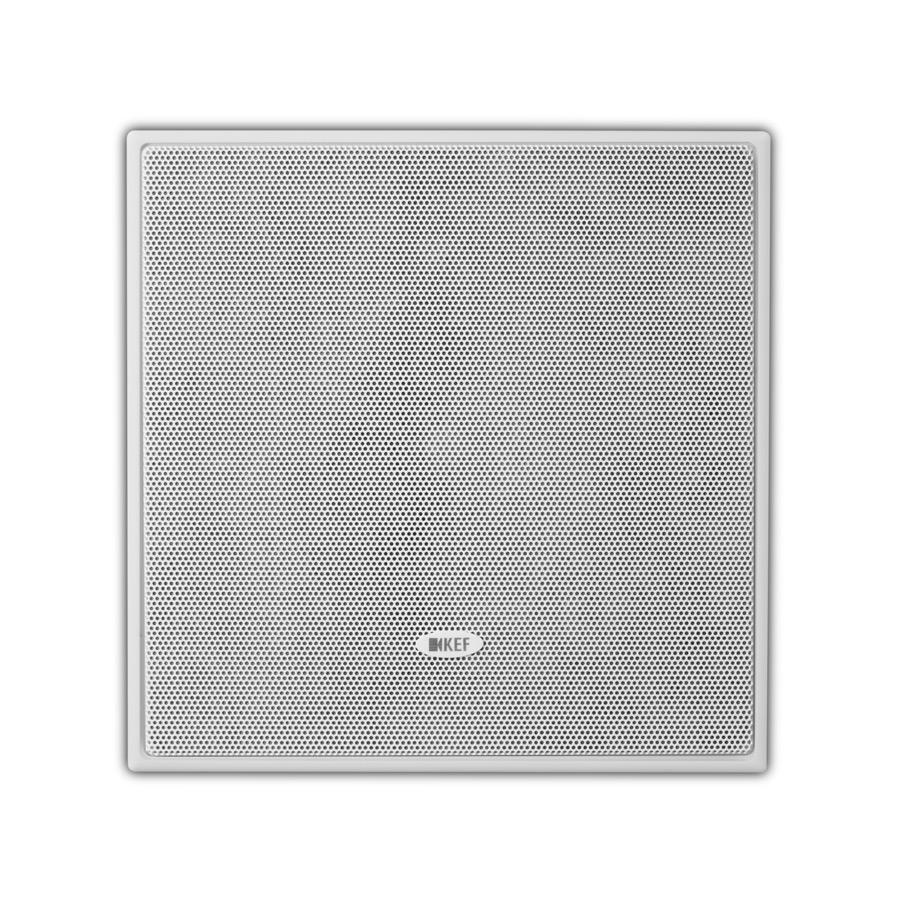

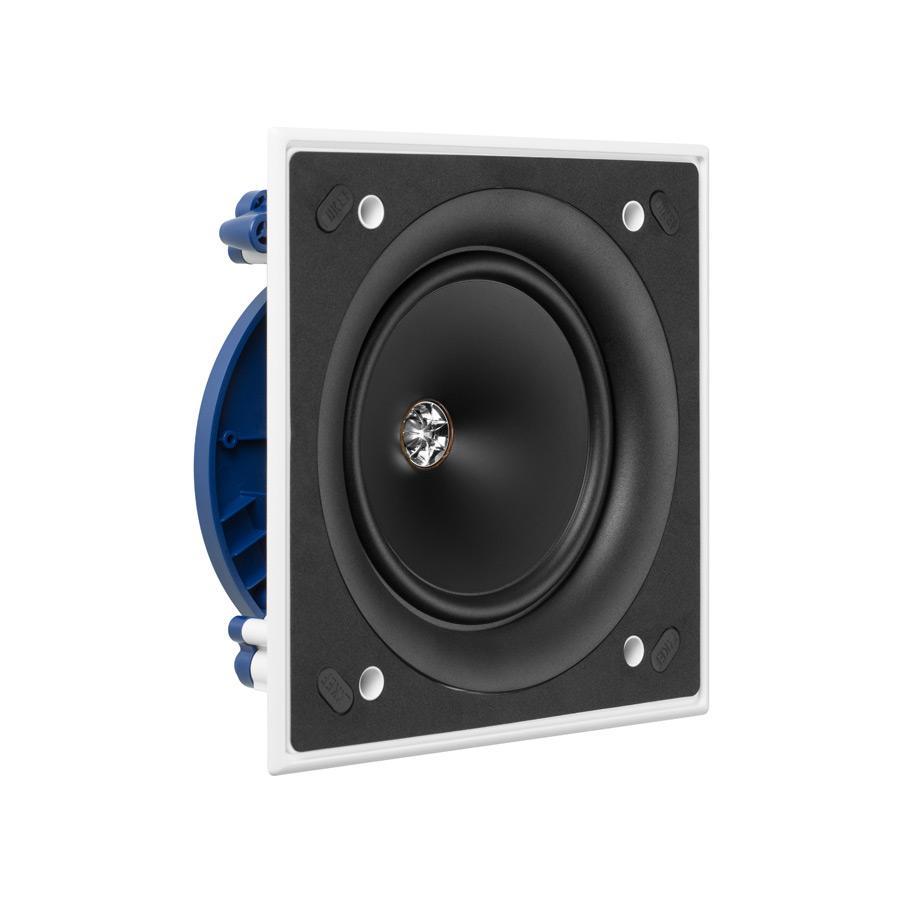

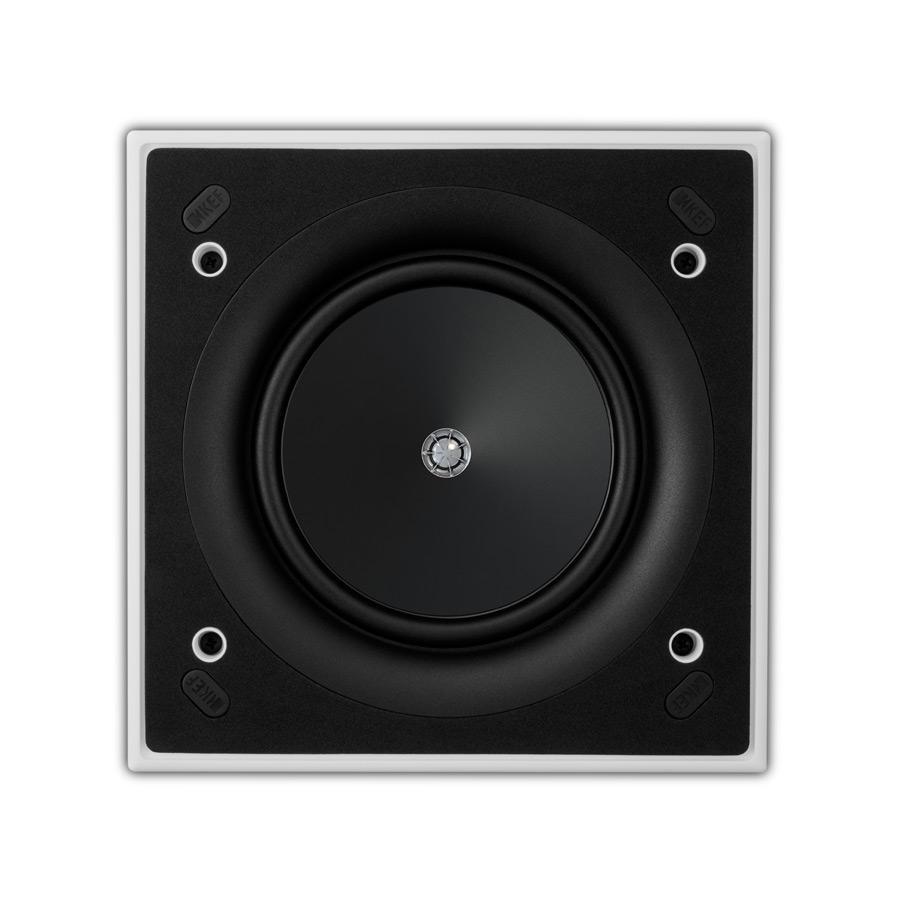

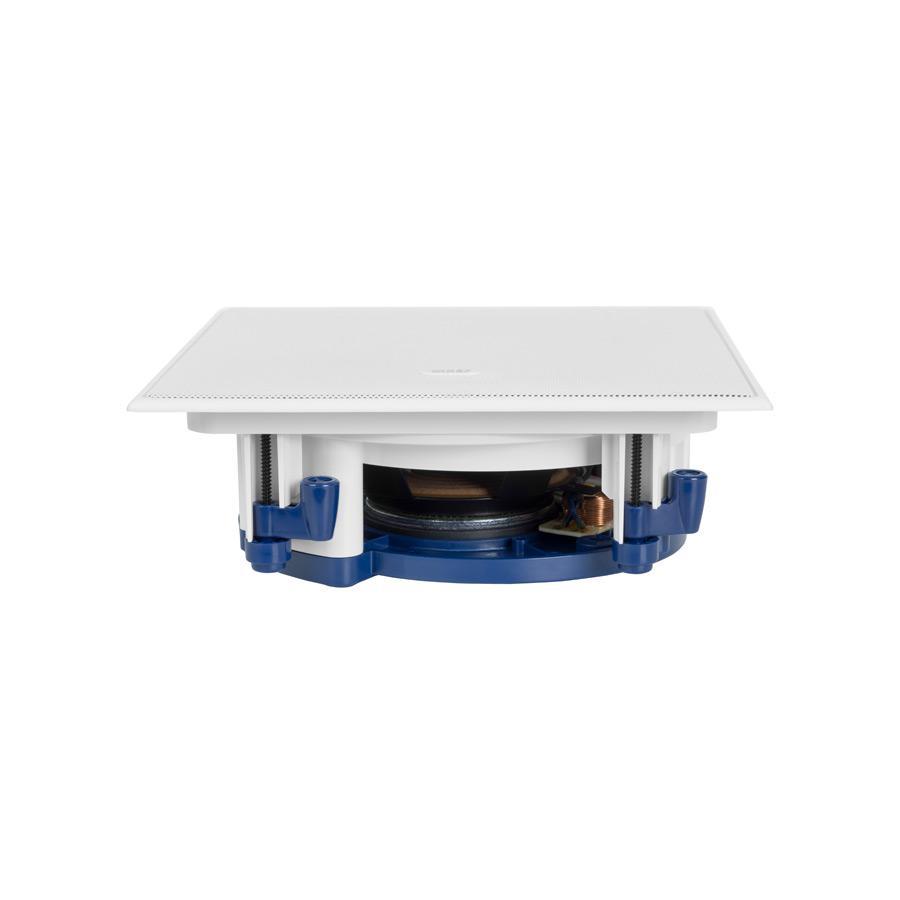

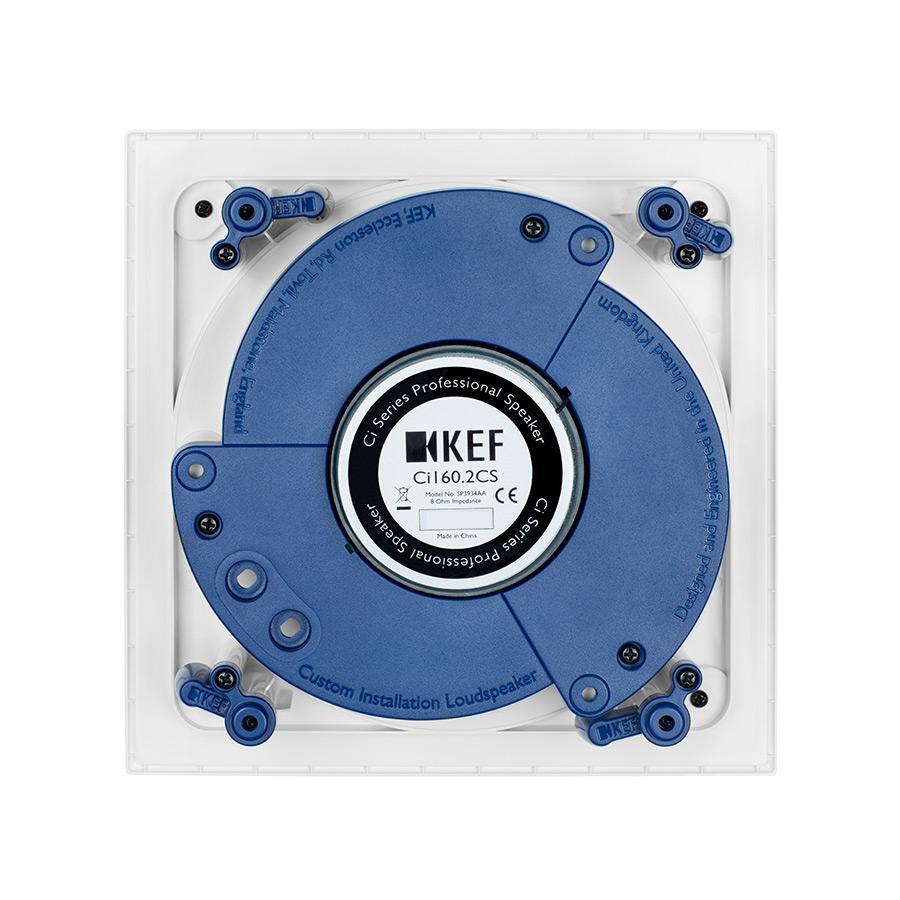

Ci160.2CS
Ci-C Series offers an ideal introduction to the world of custom installation speakers. Featuring KEF's sophisticated 'sit anywhere' Uni-Q driver array, which places the tweeter in the acoustic centre of the bass/midrange cone, this allows both the tweeter and woofer to act as a single point source that disperses the sound widely and evenly throughout the room. Weather resistant treatment protects the speakers from moisture and UV light. Ultra-Thin Bezels that are barely visible at the edge of exceptionally flat grilles mean the C Series fits unobtrusively into your home.
Key Features
- UTB™ Ultra-Thin Bezel
- 160mm (6.5in.) Uni-Q driver
- 16mm (0.6in.) Aluminium dome tweeter with tangerine waveguide
- Magnetic grille
- Paintable grille and bezel
- Weather Resistant
- IP64 certified
SPECIFICATIONS
The Details
Specifications
NOMINAL IMPEDANCE
8 Ohms
SENSITIVITY
89dB (2.83V/ 1m)
FREQUENCY RESPONSE
52Hz-20kHz (+/-6dB) open-backed
CROSSOVER RESPONSE
2.5kHz
DRIVE UNITS
LF: 160mm (6.5in.) Uni-Q
HF: 16mm (0.6in.)
RECOMMENDED AMPLIFIER POWER
10-100W
PRODUCT EXTERNAL DIMENSIONS (H X W X D)
223 x 223 x 88.7 mm (8.78 x 8.78 x 3.49 in.)
CUT-OUT DIMENSIONS (H X W)
194 x 194 mm (7.64 x 7.64 in.)
MOUNTING THICKNESS
Ceiling Thickness (Maximum) :
30mm (1.19 in.)
Ceiling Thickness (Minimum) :
3mm (0.12 in.)
MOUNTING DEPTH FROM SURFACE
84.5mm (3.33in.)
OPTIONAL ROUGH IN FRAME
RIF160S
OPTIONAL REAR ENCLOSURE
RNC160S
NET WEIGHT
1.5kg (3.3lbs)
UNIT MEASUREMENT
Piece
DOCUMENT DOWNLOAD
Please visit our Ci Software Download page for more details.
