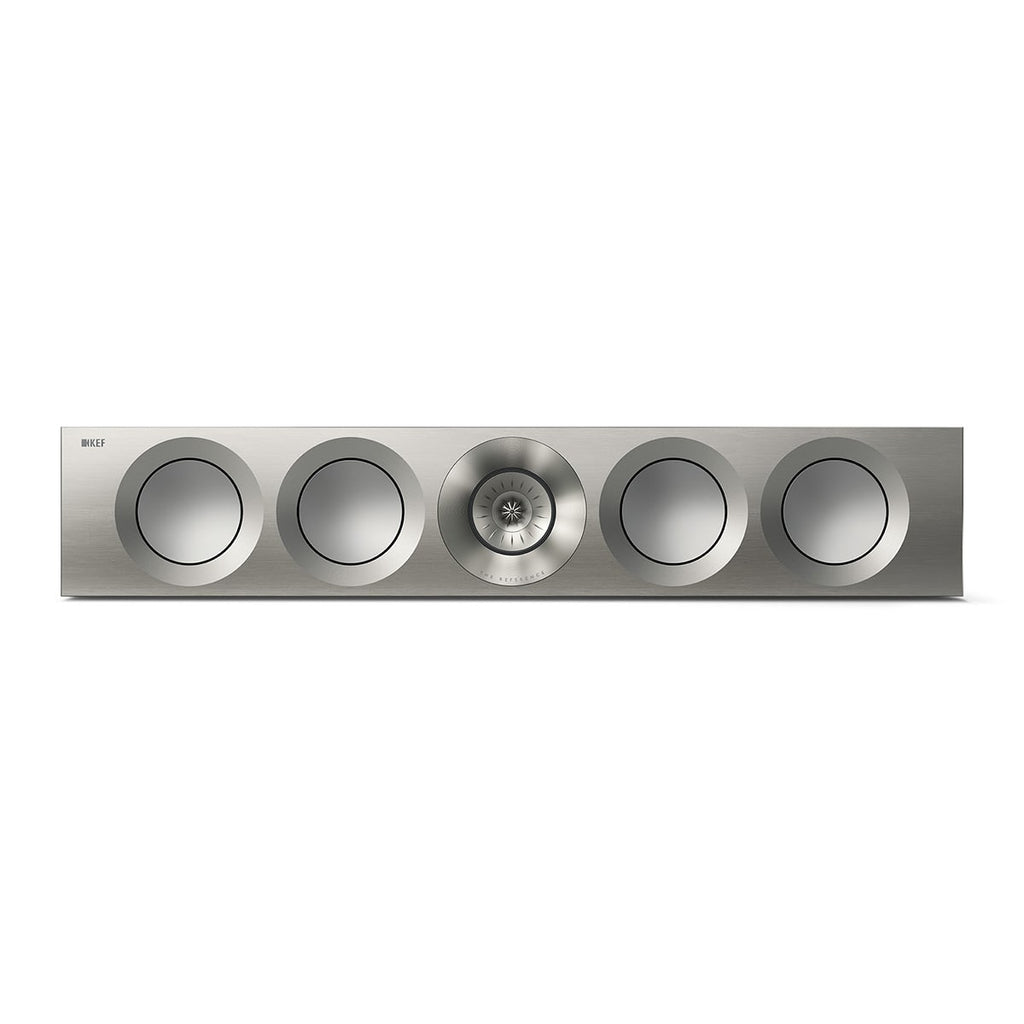

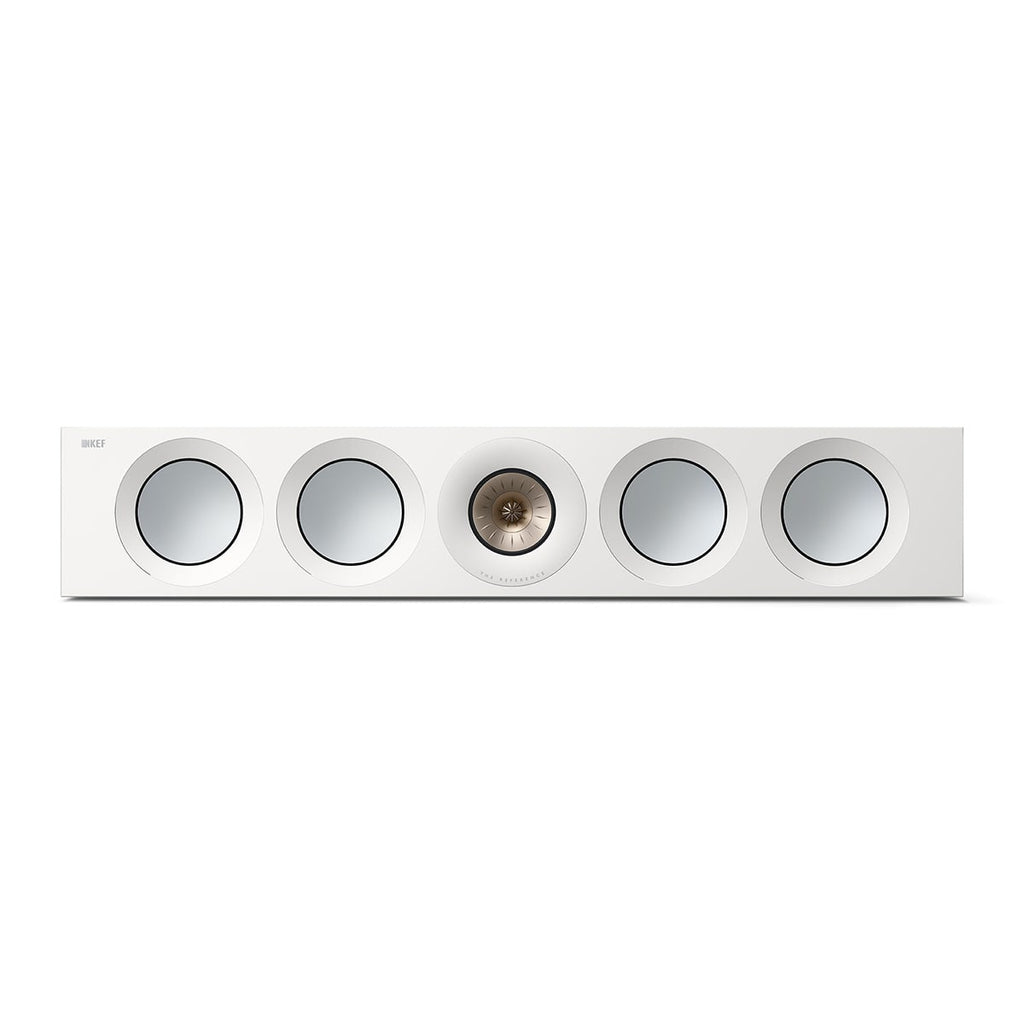

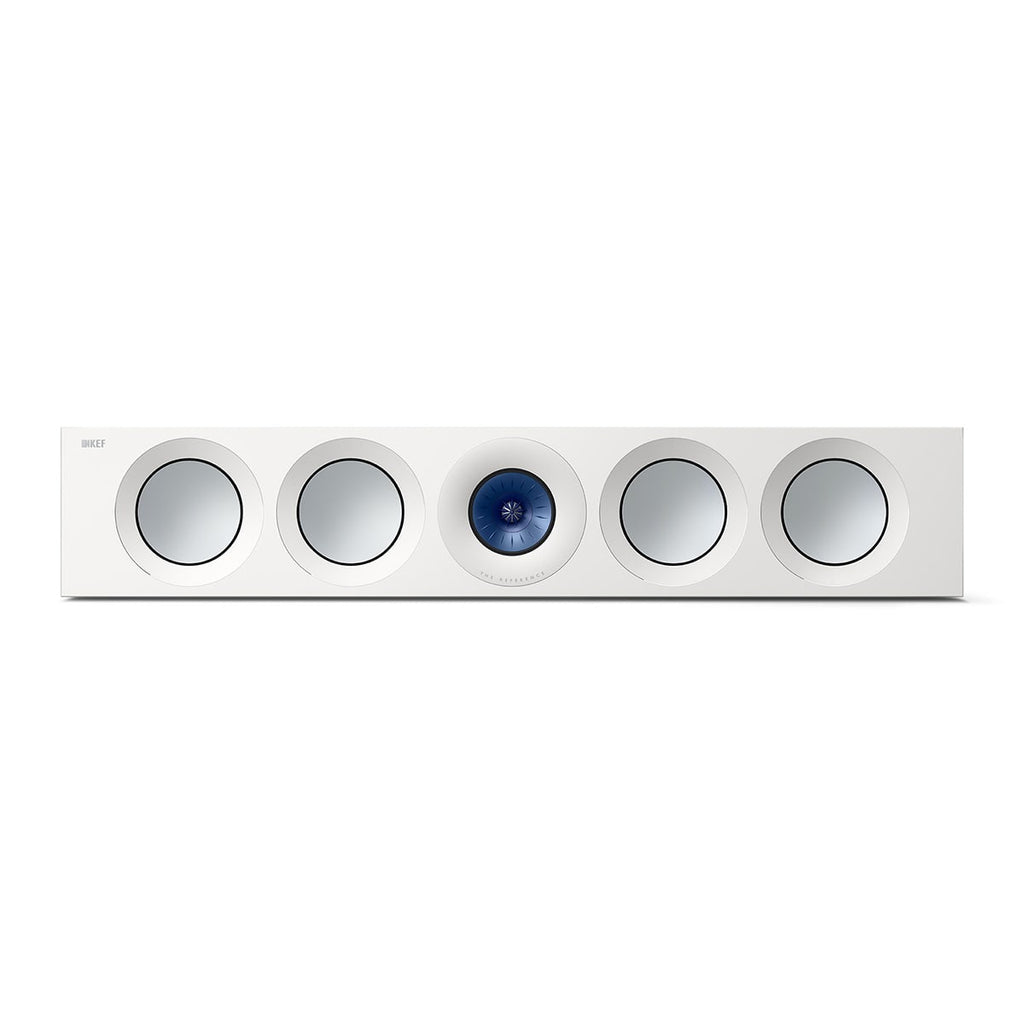

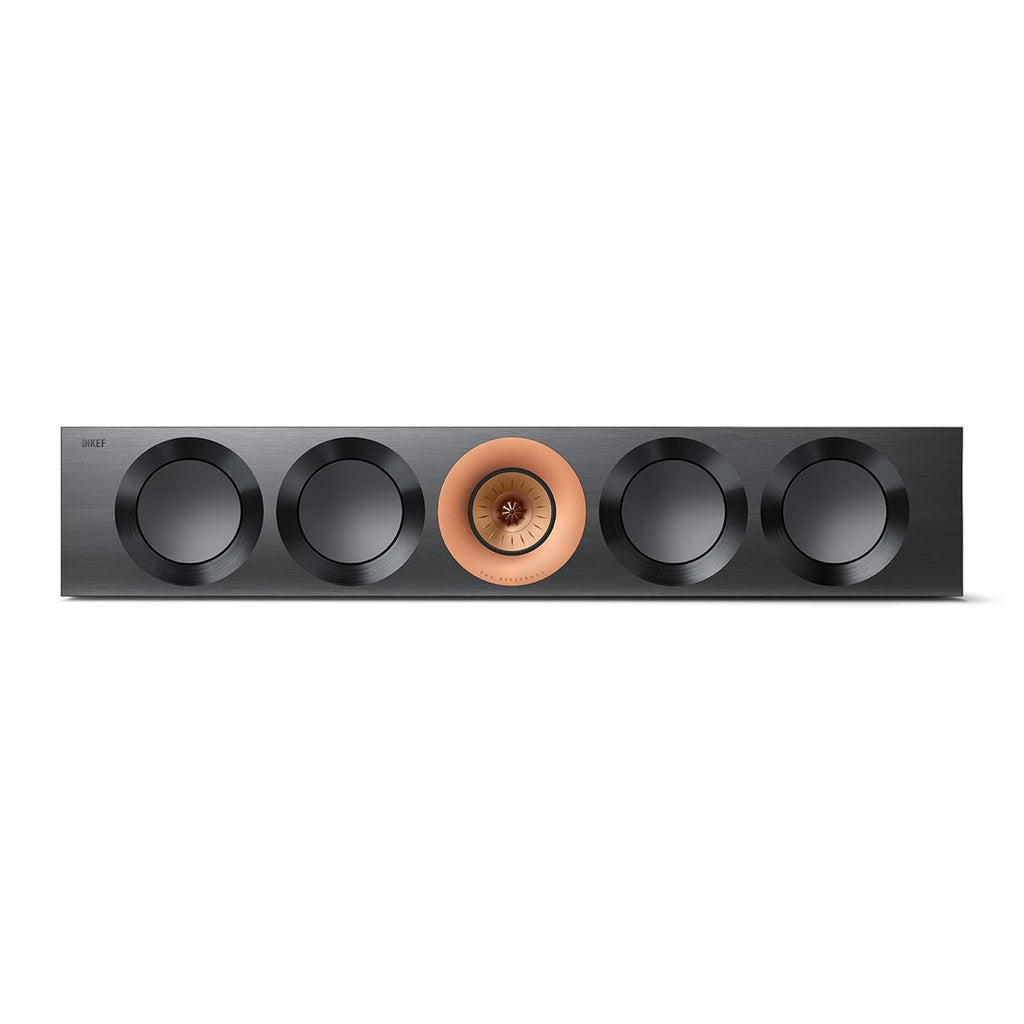

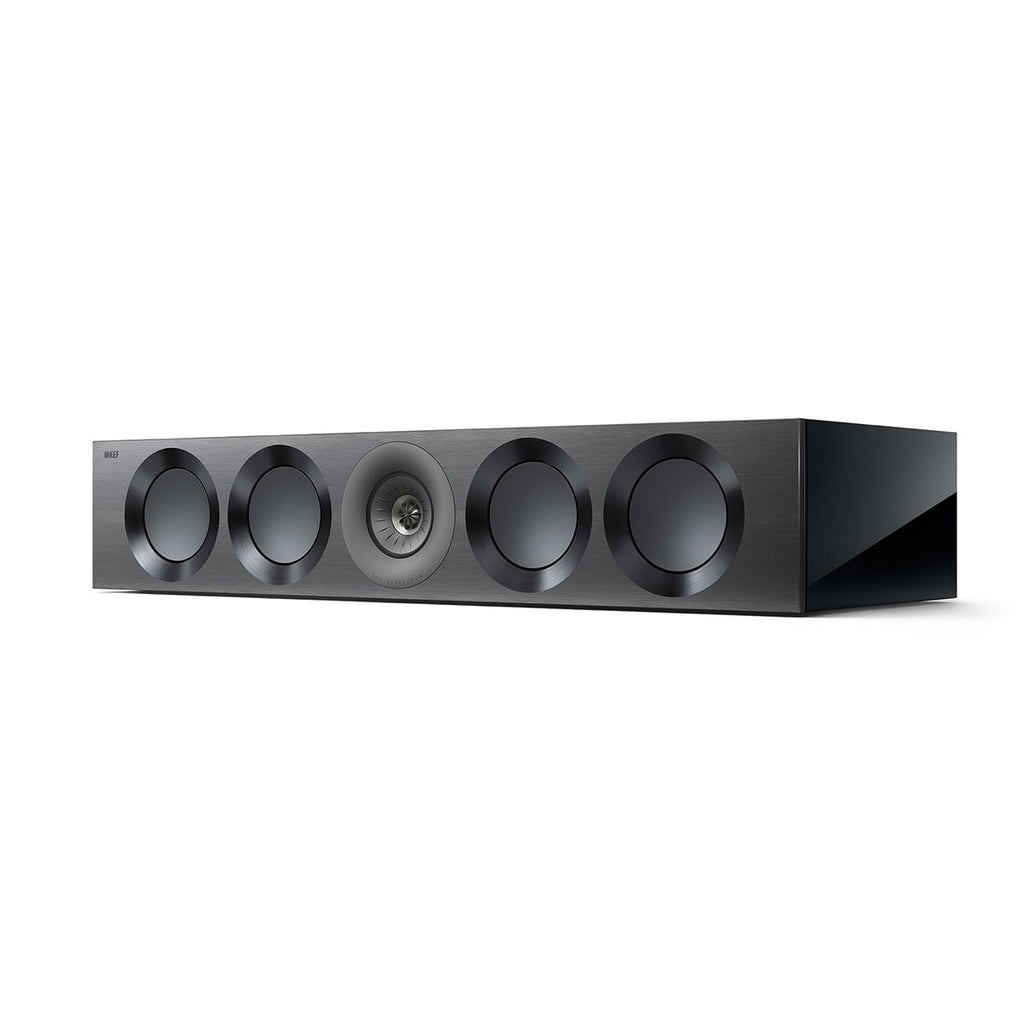

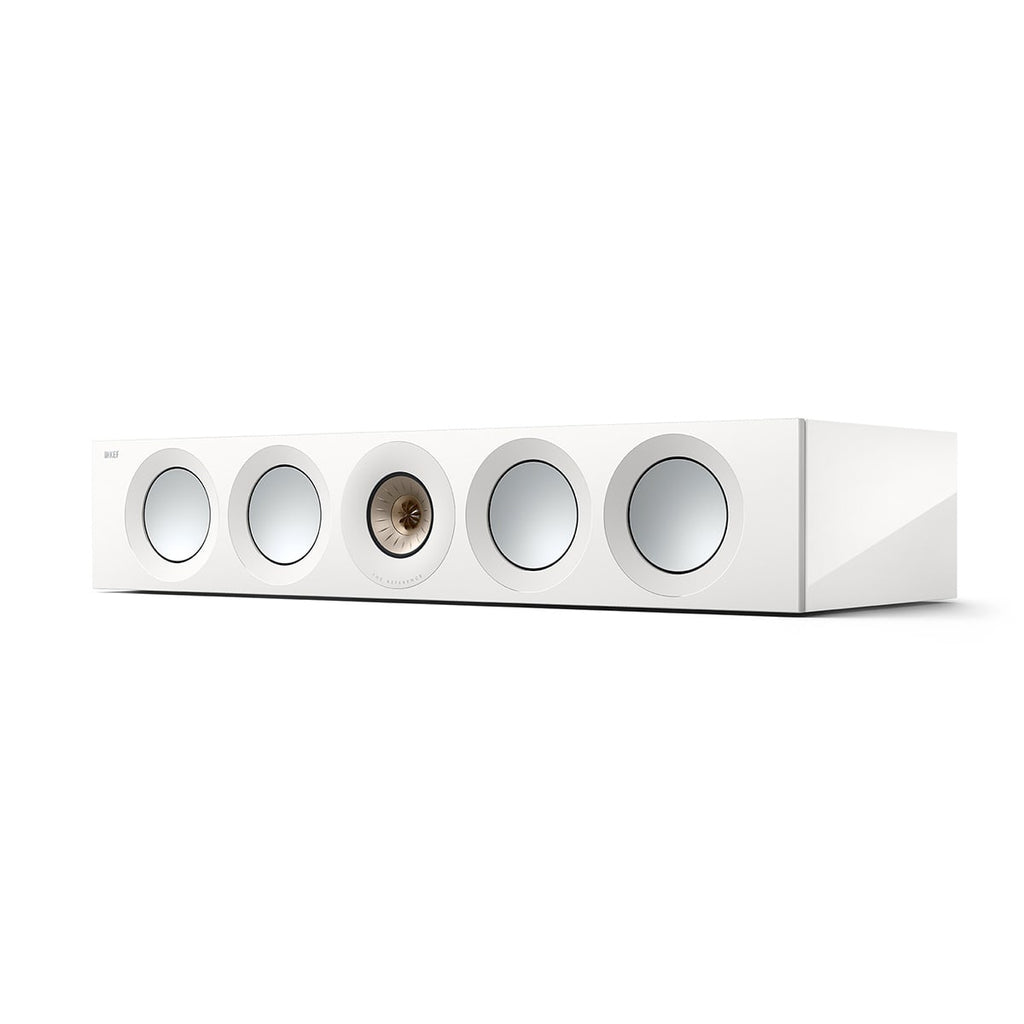

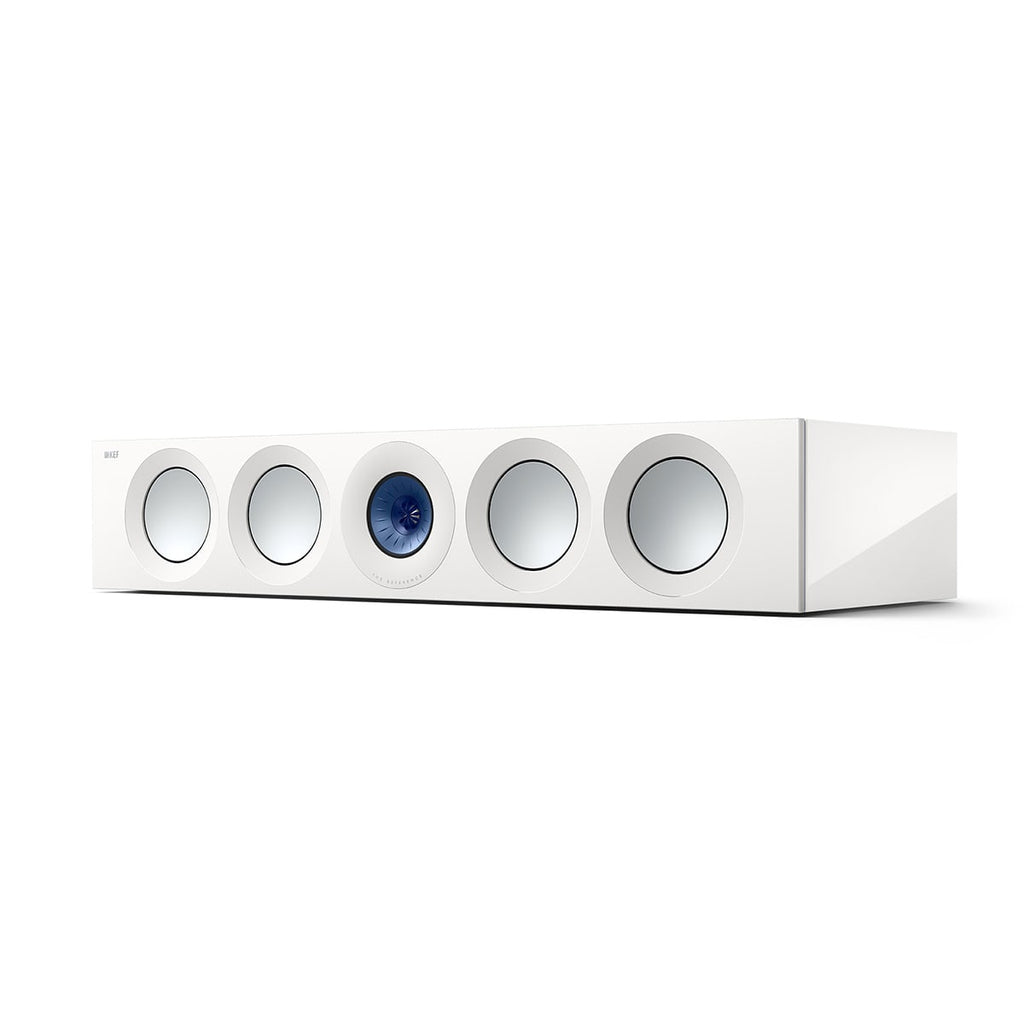

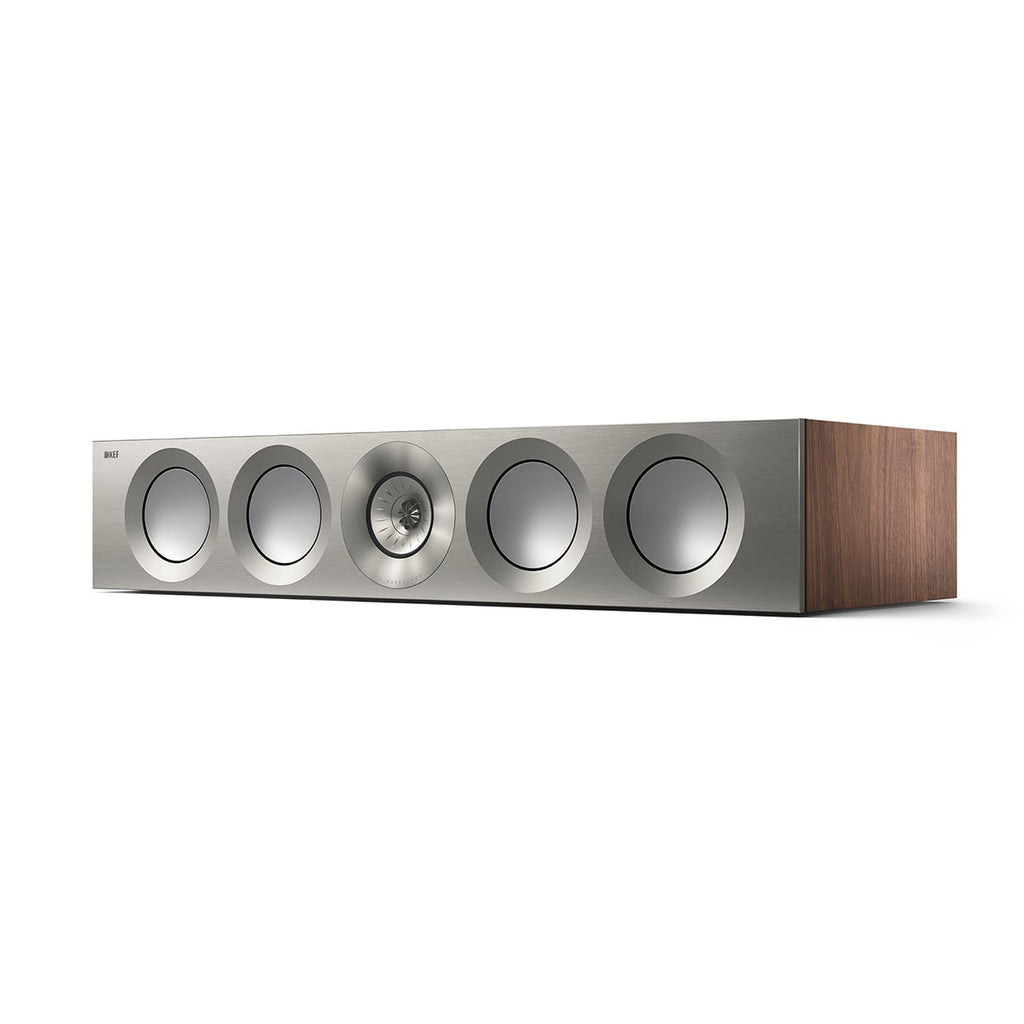

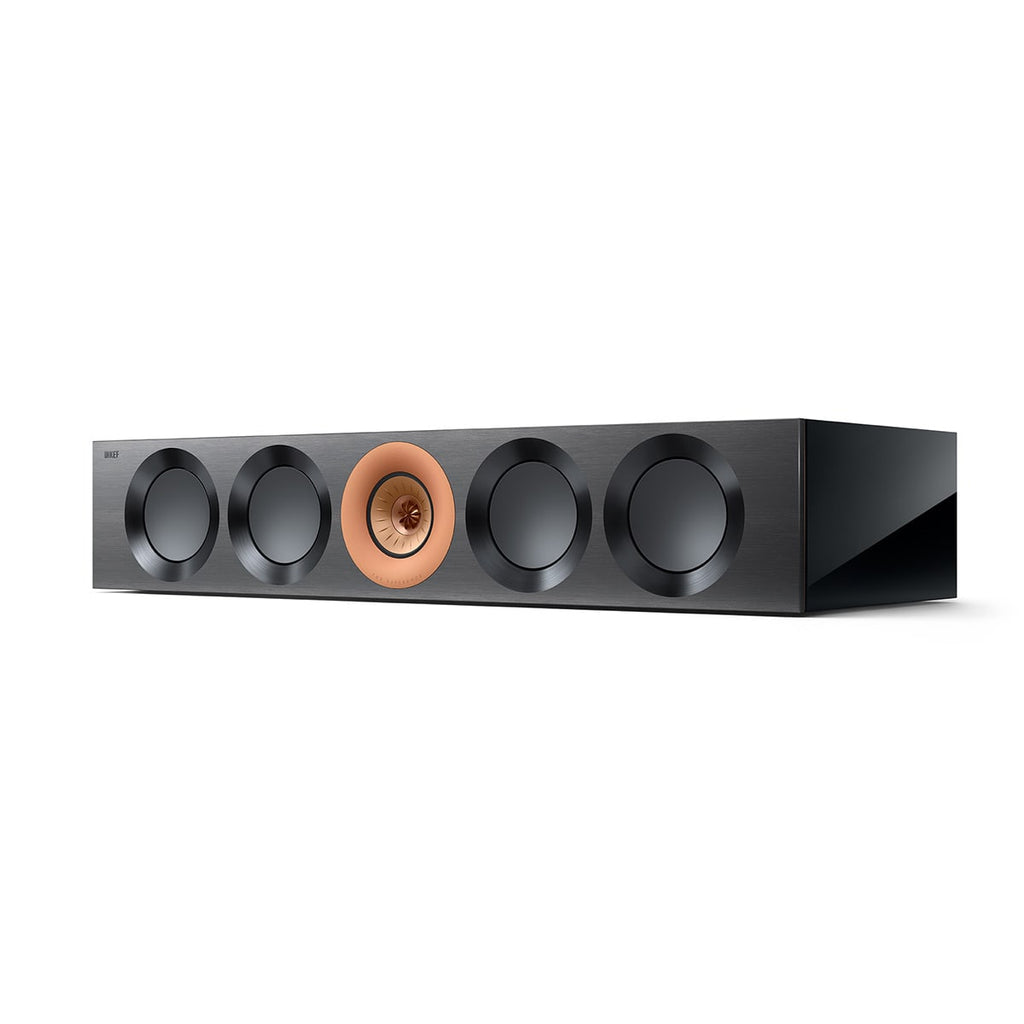

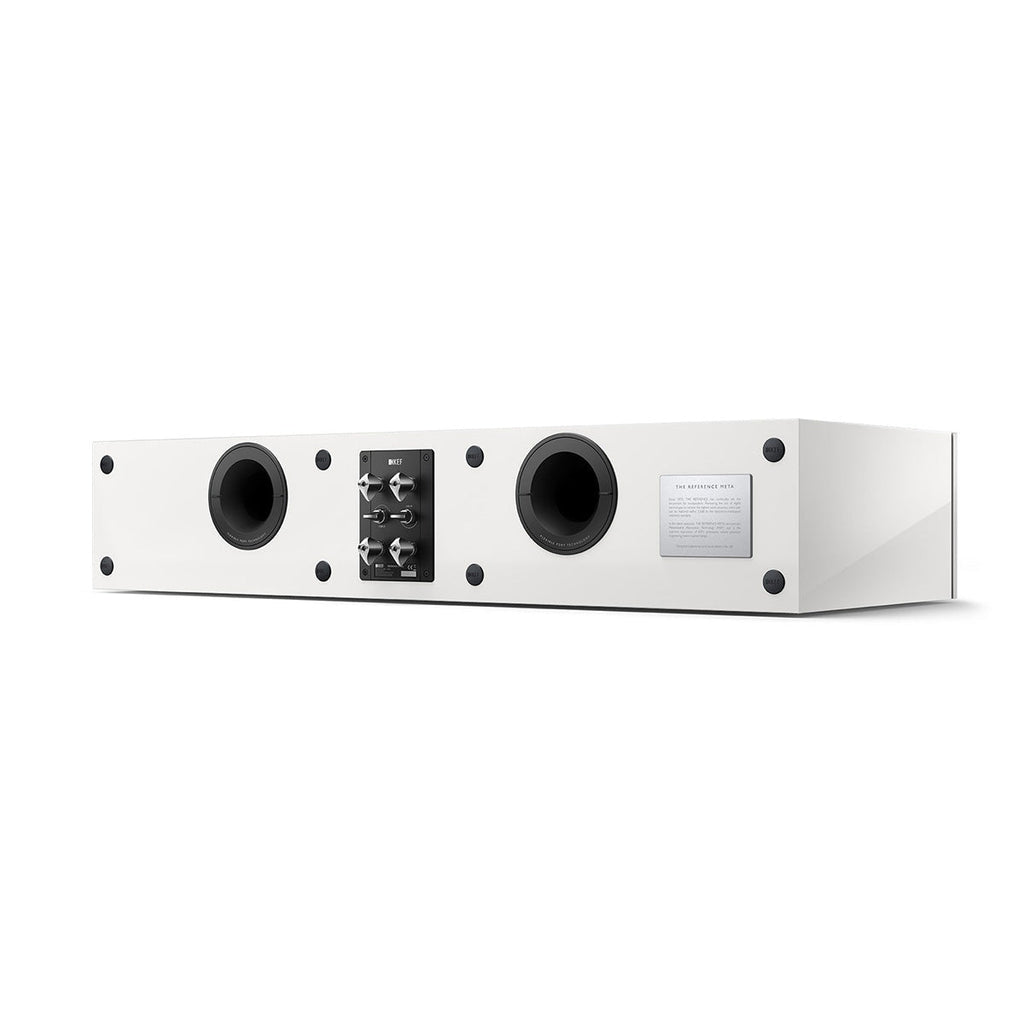

REFERENCE 4c Centre Channel Speaker

  • Sale
  • Regular price €6.500 / piece
Tax included.


Three-way centre channel

KEF's REFERENCE 4c combines breath-taking accuracy with spatial precision, if you want the cinematic experience look no further.

Spatially precise, stunningly clear and with a dynamic range that takes rapid transitions in its stride the REFERENCE 4c is the ultimate choice for those wanting to get lost in the action.


SOUND

REFERENCE 4c

As the main source of dialogue and vocals the centre channel is critical to your enjoyment of what's on screen. With KEF's superlative new 125mm (5 inch) MF/HF Uni-Q driver array and four 165mm (6.5 inch) bass drivers, the REFERENCE 4c reproduces every last detail exactly as the director or the artist intended.

SPECIFICATIONS

The Details

Specifications

WEIGHT

45.2kg (99.6lbs)



H x W x D with grille and terminal

H x W x D with grille, terminal & plinth : 205 x 1090 x 470 mm (8.1 x 42.9 x 18.5 in.)



DESIGN

Three-way bass reflex



Unit measurement

Piece

FREQUENCY RANGE

Typical in room bass response: 33Hz (-6dB)
Free Field - Short port: 43Hz - 45kHz (-6dB)
Free Field - Long port: 40Hz - 45kHz (-6dB)





FREQUENCY RESPONSE

48Hz - 35kHz (±3dB)



HARMONIC DISTORTION

2nd & 3rd harmonics (90dB, 1m)
<0.5% 40Hz – 100kHz
<0.2% 200Hz – 10kHz



MAXIMUM OUTPUT

116dB (peak sound pressure level at 1m with pink noise)



AMPLIFIER class

50-400 W



Sensitivity

90dB (2.83V/1m)



NOMINAL IMPEDANCE

8Ohms (min.3.2Ohms)


DRIVE UNITS

Uni-Q driver array:
HF: 25mm (1in.) vented aluminium dome
MF: 125mm (5in.) aluminium
Bass units
LF: 4 x165mm (6.5in.) aluminium



CROSSOVER FREQUENCIES

350Hz, 2.8kHz



downloads

THE REFERENCE Brochure
THE REFERENCE Manual
THE REFERENCE 8b Manual
THE REFERENCE White Paper
THE REFERENCE Information Sheet





KEF reserves the right, in line with continuing research and development, to amend or change specifications. E&OE. * Measurement per unit

Awards & Reviews

Home Cinema Choice Reference Status, High End Hero

"This system is British surround high-fidelity at the utter state-of-the-art. And it’s easily worthy of its Reference name."



Full Review
